Ceramic capacitors play a vital role in the world of electronics, providing essential functions in a wide range of applications. From smartphones to power supplies, these versatile components are an integral part of modern technology. But what is ceramic capacitors, and how do they differ from other types of capacitors? In this blog post, we will delve into the fascinating world of ceramic capacitors, exploring their composition, types, dielectric materials, classes, applications, and the advantages and disadvantages of using them.
As we journey through this captivating topic, we will also discuss the possibility of replacing other capacitor types, such as electrolytic and tantalum capacitors, with ceramic capacitors. Are you ready to uncover the secrets of these tiny but mighty components? Let’s dive in!
Key Takeaways
- Ceramic capacitors are electrical components with unique composition, offering non-polarized nature and minimal parasitic effects.
- They come in various types such as MLCCs and Disc Capacitors, each suited for different applications.
- Advantages include reliable frequency response, no polarity & compact structure. Disadvantages include limited capacitance values & susceptibility to microphonic effect.
Understanding Ceramic Capacitors
Ceramic capacitors are electrical components made from a combination of materials. This mixture is composed of finely ground granules of paraelectric or ferroelectric materials, which produces the desired characteristics. The ceramic material acts as a dielectric, providing insulation between the two electrodes of the capacitor. This unique composition allows for a broad range of capacitance values and voltage ratings, making ceramic capacitors suitable for various applications.
One of the most significant features of ceramic capacitors is their non-polarized nature, meaning they can be connected to AC sources safely. Ceramic capacitors offer good frequency response since they have minimal parasitic effects, like resistance or inductance. This makes ceramic capacitors excellent for high-frequency applications. Given these properties, we will further explore the composition and functioning of ceramic capacitors.
Composition of Ceramic Capacitors
Ceramic capacitors are composed of either paraelectric or ferroelectric materials, with the initial ceramic dielectric employed in capacitors being paraelectric titanium dioxide (rutile). Class 1 ceramic dielectrics are typically composed multiple layers of finely ground materials such as:
- Titanium dioxide (TiO2)
- Zinc
- Zirconium
- Niobium
- Magnesium
- Tantalum
- Cobalt
- Strontium
C0G (NP0) is the most favored formulation of the EIA Class 1 ceramic materials, known for its excellent thermal stability and low dielectric absorption.
On the other hand, Class 2 ceramic capacitors utilize ferroelectric materials, such as barium titanate (BaTiO3), as the primary dielectric component. These capacitors provide:
- Higher capacitance values than their Class 1 counterparts
- May exhibit a non-linear temperature coefficient
- Capacitance influenced by the applied voltage.
Functioning of Ceramic Capacitors
Ceramic capacitors function by employing a dielectric material sandwiched between two electrodes. When a voltage is applied across the electrodes, an electric field is generated, leading to the polarization of the dielectric material. This polarization produces an electric field that counters the applied voltage, resulting in a capacitance. Due to their unique composition, ceramic capacitors have a broad range of capacitance values, voltage ratings, and are non-polarized, making them ideal for various applications.
Ceramic capacitors are also known for their high-frequency response, which can be attributed to their minimal parasitic effects, such as resistance or inductance. This characteristic makes them suitable for high-frequency applications, such as filtering and decoupling in electronic circuits.
Now that we have a better understanding of ceramic capacitors let’s explore the different types available.
Types of Ceramic Capacitors
Ceramic capacitors are available in various types, including:
- Disc capacitors
- Multilayer ceramic capacitors (MLCCs)
- Power capacitors
- Feedthrough capacitors
Among these, MLCCs and ceramic disc capacitors are the most commonly used types in modern electronics. Each type of ceramic capacitor offers distinct advantages and characteristics, making them suitable for specific applications.
For a comprehensive understanding of these different types of ceramic capacitors, we will delve into each of them in more detail, starting with disc ceramic capacitors.

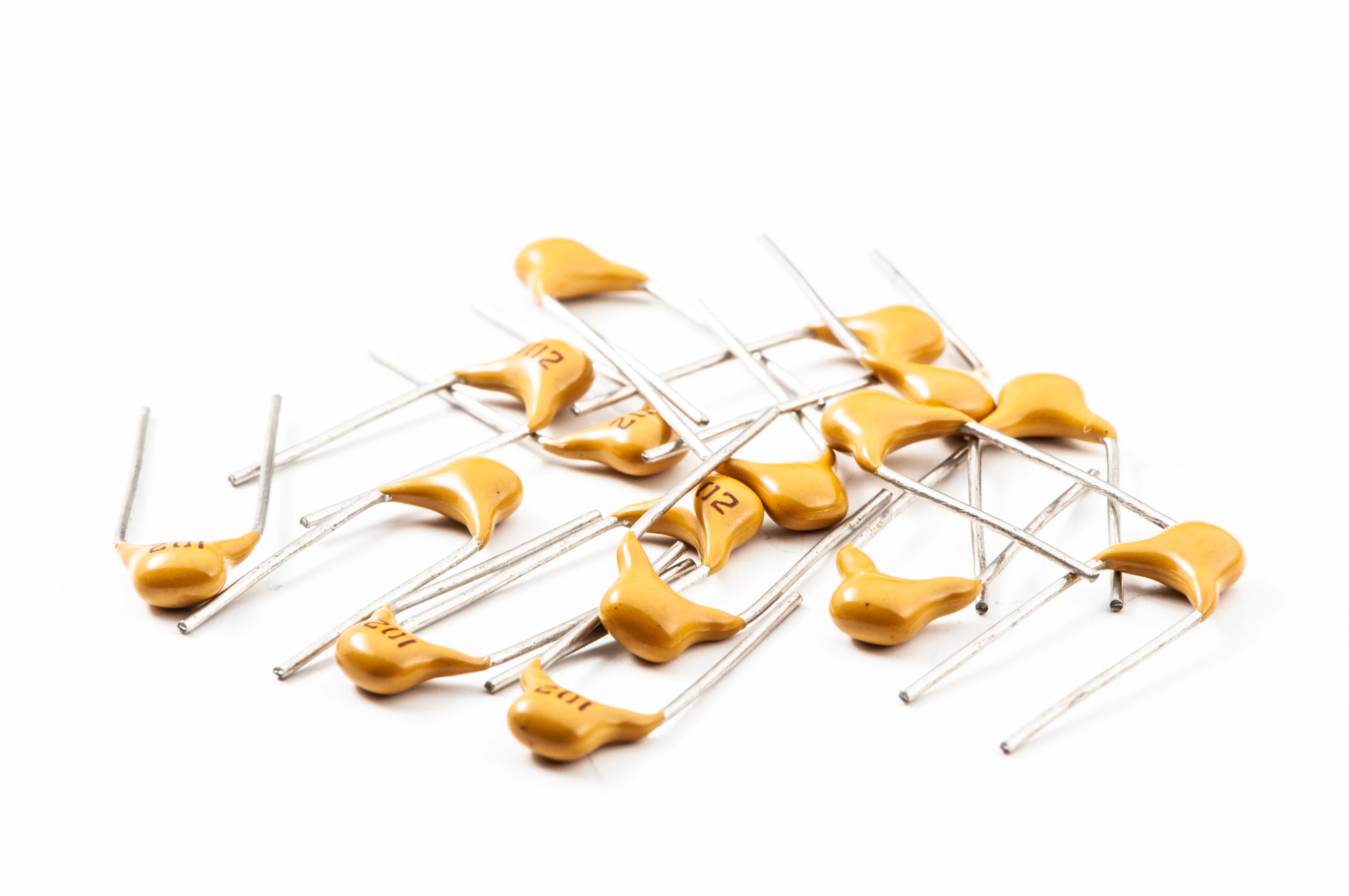

Disc Ceramic Capacitors
Ceramic disc capacitors are special components–they consist of a ceramic disc with silver contacts on both sides. This type of ceramic disc capacitor is not only reliable but also capable of storing high capacity of electric charge. The fundamental component of a disc ceramic capacitor is a single disc of ceramic dielectric with electrodes plated on it. Early ceramic capacitors featured this disc design, with metallization on both sides and contacted with tinned wires. Capacitors come in a wide variety of voltage ratings. These range from 16 volts to 15 kV and even higher. Similarly, capacitance values are also diverse; they can be as small as 10pF or as high as 100F.
Disc ceramic capacitors are often coated with ceramic layers to provide physical protection and to prevent the infiltration of moisture and other contaminants. While they are less popular than their MLCC counterparts in modern electronics, they still maintain a significant presence in various applications.
Multilayer Ceramic Capacitors (MLCCs)
Multilayer ceramic capacitors (MLCCs), also known as barrier layer capacitors, consist of multiple opposing electrode layers connected by two outer terminations. They offer several advantages over disc capacitors, such as increased volumic and capacitance density, higher component packing densities, and a smaller size. In fact, MLCCs, which are a type of multi layer ceramic capacitor, are the most commonly produced capacitors, with an estimated annual production of 1000 billion devices.
The structure of MLCCs allows for a greater capacitance value in a smaller space, making them an ideal choice for use in surface mount devices and other applications where space is at a premium.
Subsequently, we will examine power ceramic capacitors and their high voltage capabilities.
Power Ceramic Capacitors
Power ceramic capacitors are physically larger ceramic capacitors capable of withstanding significantly higher voltages than film capacitors. They can be designed to withstand voltages ranging from 2kV to 100 kV. Class 1 power ceramic capacitors are employed for resonant circuit applications in transmitter stations, while Class 2 high-power capacitors are utilized in high voltage laser power supplies, power circuit breakers, and induction furnaces.
These capacitors cater to specific high-voltage applications, showcasing the versatility and adaptability of ceramic capacitors in various electronic circuits. Finally, we will outline feedthrough ceramic capacitors and their filtering applications.
Feedthrough Ceramic Capacitors
Feedthrough ceramic capacitors consist of a ceramic tube coated with a metal layer, thus forming two poles inside and outside. These capacitors are commonly employed for high-frequency filtering, featuring a structure where the ground electrode encompasses the dielectric, and the signal terminal passes through the dielectric.
With their unique design, feedthrough ceramic capacitors provide effective filtering solutions in various applications, further demonstrating the versatility of ceramic capacitors. Having acquired a thorough understanding of the different types of ceramic capacitors, we will now investigate the dielectric materials used in their construction.
Dielectric Materials in Ceramic Capacitors
The dielectric materials used in ceramic capacitors play a crucial role in determining their electrical properties and overall performance. Ceramic capacitors are widely used in electronic circuits. Common dielectrics for ceramic capacitors include:
- C0G
- NP0
- X7R
- Y5V
- Z5U
These materials provide insulation between the plates alternating layers of the capacitor, enabling it to store electrical energy.
Ceramic capacitors offer a variety of different ceramic capacitor dielectrics in comparison to other ceramic capacitor dielectric types, such as tantalum capacitors and electrolytic capacitors. We will delve into the two main categories of dielectric materials used in ceramic capacitors: paraelectric and ferroelectric materials.
Paralectric Materials
Paralectric materials do not possess piezoelectric properties, meaning they do not generate an electric charge when subjected to mechanical stress. Examples of paralectric materials include metals, most ceramics, and certain polymers. In ceramic capacitors, these materials provide insulation between the two electrodes, allowing the capacitor to store electrical energy.
The use of paraelectric materials in ceramic capacitors contributes to their overall stability and performance, making them suitable for a wide range of applications.
Subsequently, we will study ferroelectric materials and their role in ceramic capacitors.
Ferroelectric Materials
Ferroelectric materials are substances that display ferroelectricity, a phenomenon characterized by permanent polarization in the absence of an applied electric field. Examples of such materials include:
- Triglycine sulfate
- Polyvinylidene fluoride (PVDF)
- Lithium tantalate
- Barium titanate (BaTiO3)
- Rochelle salt
In ceramic capacitors, these materials provide higher capacitance values but may exhibit a non-linear temperature coefficient and capacitance influenced by the applied voltage within a specific temperature range.
Understanding the dielectric materials used in ceramic capacitors is essential for selecting the appropriate capacitor for a specific application. With this knowledge in mind, let’s now explore the different classes of ceramic capacitors.
Ceramic Capacitor Classes
Ceramic capacitors are classified into three classes: Class 1, Class 2, and Class 3. Each class offers distinct properties and characteristics, making them suitable for specific applications and requirements.
Class 1 ceramic capacitors are highly accurate, temperature-compensating capacitors with stable voltage, temperature, and frequency, whereas Class 2 ceramic capacitors offer higher capacitance values but may have compromised accuracy specified temperature range and stability.
We will delve into the characteristics and applications of each class of ceramic capacitors to better understand their suitability for various electronic circuits.
Class 1 Ceramic Capacitors
Class 1 ceramic capacitors are known for their high stability and low losses, making them ideal for applications that require stability or a precisely defined temperature coefficient, such as precision oscillators and timers.
These capacitors are composed of a mixture of finely ground granules of paraelectric materials, such as:
- titanium dioxide (TiO2)
- zinc
- zirconium
- niobium
- magnesium
- tantalum
- cobalt
- strontium
The excellent thermal stability and low dielectric absorption of Class 1 ceramic capacitors, such as the favored C0G (NP0) formulation, make them suitable for a variety of high-performance applications, including:
- Aerospace and defense electronics
- Medical devices
- Automotive electronics
- Telecommunications equipment
- Industrial machinery
- Power electronics
In these applications, precision and reliability are crucial, and Class 1 ceramic capacitors provide the necessary performance characteristics.
Class 2 Ceramic Capacitors
Class 2 ceramic capacitors are primarily utilized in applications that require low-cost and accuracy that is not of high importance, such as power supplies. These capacitors are composed of ferroelectric materials, such as barium titanate (BaTiO3), and are capable of providing higher capacitance values than Class 1 capacitors. Their accuracy and stability may not be up to the desired levels. Changes in temperature, voltage, frequency, and time can cause a variation in their performance..
Despite their limitations in accuracy and stability, Class 2 ceramic capacitors are widely used in various electronic circuits due to their high capacitance values and cost-effectiveness.
Class 3 Ceramic Capacitors
Class 3 ceramic capacitors offer greater volumetric efficiency than Class 2 ceramic capacitors, though their temperature stability is not as robust. These capacitors have a very high permittivity, up to 50,000, which contributes to their improved volumetric efficiency. Class 3 ceramic capacitors are employed for filtering, decoupling, energy storage, and resonant circuits.
While their temperature stability is not as reliable as Class 2 ceramic capacitors, Class 3 capacitors still find various applications due to their high capacitance values and high volumetric efficiency.
Applications of Ceramic Capacitors
Ceramic capacitors have a multitude of applications, including but not limited to:
- Resonant circuits
- High voltage laser power supplies
- Power circuit breakers
- Induction furnaces
- Printed circuit boards
- Across brush DC motors to minimize RF noise
Their versatility and adaptability make them an essential component in many electronic devices and systems.
To highlight the wide range of applications, we will consider some specific examples, such as filtering, decoupling, energy storage, and resonant circuits.
Filtering Applications
Ceramic capacitors are widely employed in filtering applications, such as tone compensation and automatic volume control filtering. Their high capacitance and cost-effectiveness make them an ideal choice for these applications. Furthermore, ceramic capacitors provide reliable frequency response characteristics, making them suitable for reducing noise and interference in power supplies, audio systems, and radio frequency circuits.
However, there are some potential drawbacks associated with using ceramic capacitors in filtering applications. Their performance can be affected by temperature and humidity, and they can be challenging to solder if not properly handled.
Decoupling Applications
Ceramic capacitors play a crucial role in decoupling applications, where they are employed for both coupling and decoupling in electronic circuits. They provide a buffer between the power supply and the components, ensuring a steady power supply and diminishing the likelihood of system malfunction.
Utilizing ceramic capacitors in decoupling applications offers several benefits, such as their small size, light weight, and high capacitance-to-volume ratio. However, their performance can be affected by temperature and humidity, and they can be challenging to solder if not appropriately handled.
Energy Storage Applications
Ceramic capacitors are widely utilized in energy storage applications, such as transmitter stations, high voltage laser power supplies, and antenna coupling in communication systems. Their unique properties, such as high capacitance and voltage ratings, make them suitable for these applications.
While ceramic capacitors offer numerous advantages in energy storage applications, it is essential to select the appropriate type and class of capacitor for the specific application to ensure optimal performance and reliability.
Resonant Circuits
Ceramic capacitors find extensive use in resonant circuits, which are electrical circuits composed of resistors, inductors, and capacitors that exhibit a frequency response characteristic where the effects of capacitance and inductance are canceled out at a specific frequency.
Ceramic capacitors are commonly utilized in:
- Radios
- TVs
- Computers
- Mobile phones
Their high-frequency response, low parasitic effects, and non-polarized nature make ceramic capacitors an ideal choice for resonant circuit applications, showcasing their versatility and adaptability in various electronic circuits.
Advantages and Disadvantages of Ceramic Capacitors
Ceramic capacitors offer a range of advantages and disadvantages. Their small size, high-frequency response, and non-polarized nature make them an attractive option for various applications. However, they also have some drawbacks, such as limited capacitance values and susceptibility to microphonic effect. Understanding these pros and cons will help you make informed decisions when selecting a ceramic capacitor for your specific needs.
We will scrutinize the advantages and disadvantages of ceramic capacitors in more detail.
Advantages of Ceramic Capacitors
Ceramic capacitors provide a host of benefits, including:
- Reliable frequency response characteristics
- No polarity
- A compact structure
- Tolerance to signal interference
- Greater frequency response due to low parasitic effects
Additionally, they are cost-effective and have a long lifespan, making them an attractive option for various electronic applications.
Furthermore, their wide range of capacitance values and high voltage supply and ratings make them suitable for different applications, from power supplies to high-frequency circuits. Their versatility and adaptability have made them an essential component in modern electronic devices and systems.
Disadvantages of Ceramic Capacitors
Despite their numerous advantages, ceramic capacitors do have some drawbacks. For one, they have limited capacitance values, typically less than one microfarad. Additionally, they may be susceptible to the microphonic effect, wherein the actual capacitance value of a ceramic capacitor can be altered when exposed to mechanical vibration.
Moreover, the performance of ceramic capacitors can be affected by temperature and humidity, and they can be challenging to solder if not properly handled. While these disadvantages may not be a concern in all applications, it is essential to consider them when selecting a ceramic capacitor for your specific needs.
Replacing Other Capacitor Types with Ceramic Capacitors
In some cases, it might be feasible and beneficial to replace other capacitor types, such as electrolytic and tantalum capacitors, with ceramic capacitors. Ceramic capacitors offer:
- Increased stability
- Longevity
- Higher voltage ratings
- Non-polarity
Compared to these alternatives, ceramic capacitors have a small size and high-frequency response, making them suitable for various applications. This makes them an attractive option for replacing other capacitor types.
However, it is essential to carefully consider the specific requirements of the application and the advantages and disadvantages of ceramic capacitors before making a decision. In some cases, the unique properties of electrolytic or tantalum capacitors may be more suited to the application, and replacing them with ceramic capacitors may not be the best option.
Summary
Throughout this blog post, we have explored the fascinating world of ceramic capacitors, delving into their composition, types, dielectric materials, classes, and various applications. We have also examined the advantages and disadvantages of using ceramic capacitors, as well as the feasibility of replacing other capacitor dielectric types with ceramic capacitors.
In conclusion, ceramic capacitors play a vital role in modern electronics, offering versatility, adaptability, and reliability across a wide range of applications. By understanding their properties and characteristics, we can make informed decisions when selecting the appropriate capacitor for our specific needs, ensuring optimal performance and longevity in our electronic devices and systems.
Frequently Asked Questions
What is a ceramic capacitor used for?
Ceramic capacitors are commonly used for storing potential energy, delaying voltage changes, filtering unwanted signals, coupling, decoupling, smoothing, and filtering applications. They provide high stability performances and low-loss capabilities with accurate results, and their capacitance values are stable with respect to applied voltage, frequency and temperature.
What is the difference between ceramic and regular capacitors?
Ceramic capacitors are used for low current situations and have small capacity, no polarity, and a small equivalent series inductance. In contrast, electrolytic capacitors are often used in power supply smoothing circuits and have large capacity, polarity, and larger equivalent series inductance, as they employ an electrolyte to increase their capacitance value.
What is the advantage of ceramic capacitor?
Ceramic capacitors offer many advantages, such as good frequency response characteristics, higher maximum rated voltage, non-polarity and low parasitic effects. They are also small and lightweight, making them an inexpensive and reliable choice.
What are the two types of ceramic capacitors?
Two widely used types of ceramic capacitors are the multilayer ceramic capacitor (MLCC) and ceramic disc, both featuring small capacitances between 1 nF and 1 F, low maximum rated voltage and a nonpolarized characteristic.
What is the difference between paraelectric and ferroelectric materials in ceramic capacitors?
Paraelectric materials lack the permanent polarization exhibited by ferroelectric materials, making them an inferior choice for ceramic capacitors.
