As our reliance on electronic devices grows, so does the importance of protecting these devices from voltage spikes and transients that can cause costly damage or total failure. Enter the transient voltage suppressor (TVS) diode, a small but essential component designed to shield sensitive circuits from voltage transients and keep our devices running smoothly. In this blog post, we’ll dive deep into the world of TVS diodes, exploring their fundamentals, operation, selection, applications, and more. So, buckle up and get ready to embark on a journey into the fascinating realm of transient voltage suppression.
Key Takeaways
- TVS diodes protect electronic devices from voltage spikes through quickly clamping voltage and conducting large currents to ground.
- Two main types of TVS diodes exist: unidirectional and bidirectional, which differ in their turn-on voltages.
- When selecting a TVS diode, factors such as power rating, device type, reverse stand-off voltage must be considered for optimal protection.

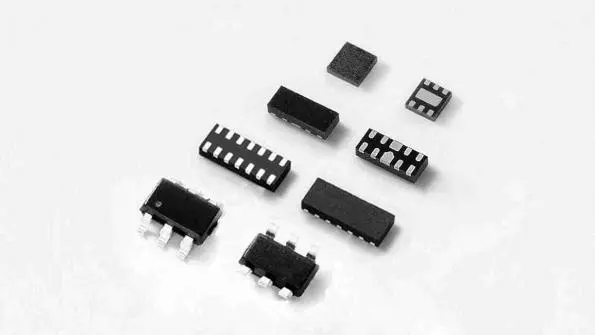

Fundamentals of TVS Diodes
TVS diodes, also known as transient voltage suppressor diodes, are vital components responsible for suppressing voltage transients, which are sudden, brief increases in voltage that can wreak havoc on electronic devices. A transient voltage suppressor diode is designed to protect electronic components from voltage spikes caused by various sources, such as inductive load switching, electrostatic discharge, and lightning strikes. Transient voltage suppressors, including diodes, are essential for safeguarding sensitive electronics.
There are two main types of TVS diodes: unidirectional and bidirectional. Unidirectional diodes are designed to handle voltage transients in one direction, while bidirectional diodes can handle voltage transients in both directions. Choosing the right type of TVS diode depends on the specific requirements of your application.
Definition and Purpose
A TVS diode is a component that helps protect electronic devices from high-voltage transients by quickly clamping voltage and conducting large currents to ground. Shielding sensitive components, such as microprocessors or integrated circuits, from potentially damaging voltage spikes requires a rapid response.
In essence, the TVS diode serves as a voltage clamp, preventing the voltage from surpassing a certain threshold and safeguarding the circuit from harm.
Types of TVS Diodes
As mentioned earlier, there are two types of TVS diodes: unidirectional and bidirectional. A unidirectional diode exhibits a higher turn-on voltage in the positive direction as compared to the negative direction, whereas a bi-directional diode displays an identical characteristic curve in the positive and negative direction.
This is different from a Zener diode, which has a specific Zener voltage. The choice between unidirectional and bidirectional TVS diodes depends on the specific application requirements and the directionality of the voltage transients that need to be suppressed.
How TVS Diodes Operate
TVS diodes work by:
- Filtering current and suppressing the voltage passing through a junction
- Limiting the voltage to a specific level
- Routing the excess voltage away from the circuit to the ground
This is accomplished through a process known as the Avalanche effect, which refers to the clamping action of the TVS diode in restricting the transient voltage during a transient voltage occurrence.
Given their response time – typically expressed in picoseconds – TVS diodes are ideal for protecting sensitive electronic components from voltage spikes.
Clamping Action
The clamping action of a TVS diode refers to its capability to restrict the voltage to a designated level and divert any additional voltage away from the circuit. In other words, the TVS diode functions as a voltage clamp, ensuring that the voltage experienced by the protected load remains within a safe range.
The clamping voltage indicates the peak level the circuit is exposed to during a test waveform event when the induced voltage exceeds a certain threshold. This voltage should always be kept as high as possible to ensure safety and reliability. Preventing damage to sensitive components and maintaining the circuit’s integrity hinges on rapid voltage regulation.
Response Time
The fast response time of TVS diodes is one of their most significant advantages. As mentioned earlier, TVS diodes typically have a response time in the picosecond range. This rapid response enables them to quickly divert powerful transient voltages away from delicate components, offering a higher level of protection than other transient voltage suppression devices.
High-frequency circuits and applications involving sensitive semiconductors necessitate rapid response times, given that even brief voltage spikes can cause irreversible damage.
Selecting the Right TVS Diode
Choosing the right TVS diode for your application can make all the difference in ensuring optimal protection for your electronic devices. Consideration of factors like the circuit operating voltage, peak pulse power requirements, clamping voltage (VC), breakdown voltage level (VBR), and other key attributes is vital to making an informed decision. Additionally, TVS diodes are available in unidirectional, bidirectional, and transient voltage suppressor array configurations, offering a range of options to suit various application requirements.
Effectively safeguarding your electronic devices from voltage spikes and transients, ensuring their long-term reliability and performance, requires careful consideration of these factors and selecting the appropriate TVS diode for your specific application.
Key Factors to Consider
When selecting a TVS diode, some of the key factors to consider include:
- Voltage rating: determines the maximum voltage that the device can handle
- Power rating: indicates the maximum amount of power that the device can dissipate
- Device type: such as unidirectional or bidirectional
Moreover, considering the reverse stand-off voltage – the maximum voltage that can be applied to the protector without activating the device, and the peak pulse current capability, indicating the maximum current that the device can withstand, is crucial.
Attributes of TVS Diodes
TVS diodes possess various attributes, such as:
- Peak pulse power
- Clamping voltage
- Breakdown voltage
- ESD tolerance
Matching or exceeding the circuit requirements with the attributes of the selected TVS diode is crucial to ensure optimal protection for your electronic devices.
For example, if your circuit requires a clamping voltage of 15V, you should choose a TVS diode with a clamping voltage of 15V or lower. By carefully considering the attributes of the TVS diode and aligning them with your circuit requirements, you can effectively protect your devices from voltage transients and ensure their long-term reliability.
Common Applications of TVS Diodes
TVS diodes are commonly used in a wide range of applications, such as data and signal line protection, power supply protection, and automotive electronics. These applications highlight the versatility and effectiveness of TVS diodes in safeguarding various electronic devices from voltage spikes and transients.
Across these applications, TVS diodes contribute greatly to maintaining the integrity and performance of electronic devices, ensuring reliable operation even amidst voltage fluctuations and other potential hazards.
Data and Signal Line Protection
Data and signal line protection is a common application for TVS diodes. They are employed to:
- Protect sensitive electronic components from voltage fluctuations
- Ensure the integrity of communication and data transfer
- Prevent interference
- Protect against electrostatic discharge (ESD) and surge events
- Maintain low diversion/clamping in low-energy circuits
The use of TVS diodes in this capacity facilitates the protection and proper functioning of electronic systems.
Additionally, TVS diodes are compatible with high-frequency and high-speed data lines, making them an ideal choice for data and signal line protection applications.
Power Supply Protection
Power supply protection is another important application for TVS diodes, which are used to safeguard power supplies from voltage spikes and transients. In this capacity, TVS diodes clamp the voltage to a safe level when voltage spikes or transients occur, preventing the voltage from exceeding a maximum safe level and causing damage to the device.
Implementing TVS diodes in power supply protection, which includes rectification and voltage regulation, paves the way for long-term reliability and performance of your electronic devices.
Automotive Electronics
TVS diodes are also commonly used in automotive electronics to protect sensitive components from voltage transients and spikes. In this industry, electronic devices are often subjected to harsh environments and extreme temperature variations, making them particularly susceptible to voltage fluctuations.
Employing TVS diodes in automotive applications offers several benefits, including:
- Faster response times
- Lower clamping voltages
- Improved safety
- ESD protection
These advantages contribute to the reliability and performance of automotive components.
Comparing TVS Diodes with Other Protection Devices
A comparison of TVS diodes with other protection devices, such as metal oxide varistors (MOVs) and Zener diodes, is essential when considering transient voltage suppression solutions. Each of these devices offers unique characteristics and applications, and understanding the differences between them can help you determine the most suitable option for your specific needs.
In the following sections, we’ll explore the key differences between TVS diodes and other protection devices, highlighting their respective advantages and disadvantages in various applications.
Metal Oxide Varistors (MOVs)
Metal oxide varistors (MOVs) are voltage-sensitive variable resistors that are used for transient voltage suppression, similar to TVS diodes. However, there are some key differences between the two. MOVs are bidirectional components suitable for both AC and DC circuits, while TVS diodes are usually unidirectional.
Additionally, MOVs can handle more current compared to TVS diodes, but they have a higher clamping voltage and may have slower response times. Similar to TVS diodes, the choice between MOVs and TVS diodes hinges on the specific requirements of the application and the desired level of protection.
Zener Diodes
Zener diodes, like TVS diodes, are used for transient voltage suppression, but they may not be as robust or fast-acting as TVS diodes. Zener diodes are generally used for constant voltage regulation, while TVS diodes are better suited for managing rapid voltage transients and short bursts of high voltage.
Additionally, Zener diodes can handle more current compared to TVS diodes, but they may not be able to manage significant voltage transients as effectively. Choosing between Zener diodes and TVS diodes requires consideration of the specific requirements of your application and the necessary level of protection.
Best Practices for Implementing TVS Diodes
Effective implementation of TVS diodes entails proper placement, orientation, and testing to guarantee adequate protection of your electronic devices against voltage transients and spikes. By following best practices for TVS diode implementation, you can maximize the effectiveness of your transient voltage suppression solution and safeguard your valuable electronic devices.
Following is an outline of some key best practices for implementing TVS diodes and the significance of choosing the appropriate TVS diode for your specific application.
Placement and Orientation
Correct placement and orientation of TVS diodes are crucial for effective protection against voltage transients. Here are some recommendations:
- Place TVS diodes near exposed conductors.
- Route the path to the diode using straight and short paths.
- Ensure a low-impedance ground connection for optimal performance.
A TVS diode requires a low-impedance ground connection to respond rapidly and effectively to voltage transients, providing optimal protection for your electronic devices.
Testing and Verification
Testing and verification of TVS diode performance in the actual application are essential to ensure adequate protection. This includes:
- Measuring the breakdown voltage
- Measuring the clamping voltage
- Measuring the peak pulse current
- Assessing the overall performance under various conditions
Thorough testing and verification of your TVS diode’s performance instills confidence that your electronic devices are well-protected against voltage transients and spikes.
Troubleshooting TVS Diode Issues
Despite their effectiveness in protecting electronic devices against voltage transients, TVS diodes can sometimes experience issues that may compromise their performance. Two common issues include overheating and insufficient protection.
The following sections discuss these issues and offer guidance on addressing them to ensure optimal performance and protection for your electronic devices.
Overheating
Overheating in TVS diodes may indicate improper selection or placement, requiring adjustments for optimal protection. Common causes of overheating in TVS diodes include insufficient heat sinking, high ambient temperatures, and high surge currents.
Addressing overheating issues may require reevaluating the selection and placement of your TVS diode or considering the use of a current-limiting device to reduce the strain on the diode and ensure optimal protection.
Insufficient Protection
Insufficient protection from TVS diodes may result from:
- Incorrect selection or implementation
- Malfunctioning TVS diodes
- Insufficient ESD protection
- Inadequate clamping performance
These potential causes, which may involve internal or external connections, necessitate further evaluation and adjustments.
Addressing these issues involves a careful review of the selection and implementation of your TVS diode, ensuring it meets the specific requirements of your application and provides the necessary level of protection.
Summary
In conclusion, TVS diodes play a crucial role in protecting electronic devices from voltage spikes and transients, ensuring their long-term reliability and performance. By understanding the fundamentals, operation, and selection of TVS diodes, as well as their common applications and best practices for implementation, you can effectively safeguard your valuable electronic devices against the damaging effects of voltage fluctuations. So, whether you’re working with data and signal lines, power supplies, or automotive electronics, remember that TVS diodes are your first line of defense against voltage transients and spikes – keeping your devices running smoothly and safely.
Frequently Asked Questions
What is the difference between TVS and normal diodes?
TVS diodes differ from normal diodes in that they are specifically designed to conduct current in the reverse breakdown region.
Is a TVS diode the same as a Zener diode?
No, a TVS diode is not the same as a Zener diode. A TVS diode absorbs surge voltage to protect other semiconductor devices, whereas a Zener diode has a different construction and provides constant voltage to other semiconductor devices with a negative temperature coefficient.
How do TVS diodes fail?
TVS diodes fail when exposed to a voltage higher than its designed capability, potentially creating a safety hazard if the circuit is not properly fused.
What does a suppression diode do?
Transient Voltage Suppression (TVS) diodes, also known as Transient Suppression Diodes or Transorbs, absorb abnormal voltage from interfaces and external terminals to prevent malfunction of circuits and protect devices. They are useful for absorbing and suppressing static electricity or short-pulse voltage.
What is the primary function of a TVS diode?
The primary function of a TVS diode is to protect electronic devices from high-voltage transients, quickly clamping voltage and conducting large currents to ground.
