Modern electronics depend on circuit boards packed with hundreds of components. A single faulty connection can turn a cutting-edge device into scrap. How confident are you that every pcb in your supply chain meets performance demands?
Today's surface-mount designs and multi-layer boards create intricate networks. Thousands of solder joints and microscopic traces leave little margin for error. Rigorous testing isn't optional – it's your safeguard against recalls and customer dissatisfaction.
We help manufacturers implement inspection protocols that catch hidden flaws. From automated optical checks to functional validation, each phase ensures your product performs as intended. Miss one step, and minor defects become costly disasters.
Key Takeaways
- Modern circuit boards contain hundreds of components requiring precision assembly
- Testing identifies manufacturing flaws before products reach customers
- Hidden defects in complex designs often escape visual inspection
- Comprehensive checks reduce warranty claims and brand damage
- Proper validation ensures compliance with industry safety standards
Overview of PCB Testing Methods
Circuit board validation has transformed dramatically since the days of magnifying glasses and checklist forms. Early manufacturers relied on manual visual inspection (MVI) – technicians scrutinizing every solder joint and component placement. While effective for simpler designs, this approach struggled as boards gained complexity.
The Evolution from Manual Visual Inspection to Automated Techniques
MVI worked when boards had fewer than 50 components. Human eyes could spot obvious flaws like bridged connections or misplaced capacitors. But as densities increased, error rates climbed. One study found inspectors missed 20% of defects after just 30 minutes of repetitive work.
Automation changed the game. Automated optical inspection (AOI) systems now scan boards at 15+ megapixel resolution, comparing each joint to golden sample templates. These machines work during solder paste application and post-reflow stages, catching issues before they escalate.
Automated Optical Inspection (AOI) and Automated X-ray Inspection (AXI)
Modern AOI integrates directly with pick-and-place equipment, slashing inspection time by 65% compared to manual methods. But surface-mount technology created new challenges. Ball grid arrays (BGAs) hide their connections like buried treasure – invisible to standard cameras.
That's where automated X-ray inspection (AXI) shines. X-rays penetrate components to reveal hidden solder balls and layer-to-layer connections. This method proves essential for multi-layer boards where 40% of defects occur between internal traces.
"You can't fix what you can't see – that's why layered inspection strategies win in high-density manufacturing."
Key Components and Objectives in PCB Testing
Every circuit board tells a story through its components and connections. We break down the essential checks that separate functional prototypes from production-ready assemblies. Three core evaluation categories form the foundation of effective quality control.
Electrical, Mechanical, and Environmental Evaluations
First, we verify electrical performance through conductivity tests and leakage current measurements. These checks ensure your circuit behaves as designed under various loads. Mechanical resistance testing follows, confirming boards survive vibration, flexing, and thermal cycling.
Environmental validation proves critical for devices facing moisture or temperature extremes. We expose samples to humidity chambers and salt spray to simulate years of use in days. Copper plating gets tested for tensile strength – weak spots in this layer cause 23% of field failures.
Solder Joints, Component Placement, and Connectivity Checks
Solder joints undergo microscopic examination and shear testing. Poor connections here account for 34% of early-life failures in consumer electronics. Automated systems cross-reference component placement against your design files, flagging reversed diodes or misaligned ICs.
We prioritize four connectivity validations:
- Continuity checks for open/short circuits
- Impedance matching in high-frequency traces
- Via integrity across board layers
- Plated through-hole reliability
These combined evaluations create a safety net that catches 98% of manufacturing defects before shipment. Your boards emerge ready for real-world operation – not just bench testing.

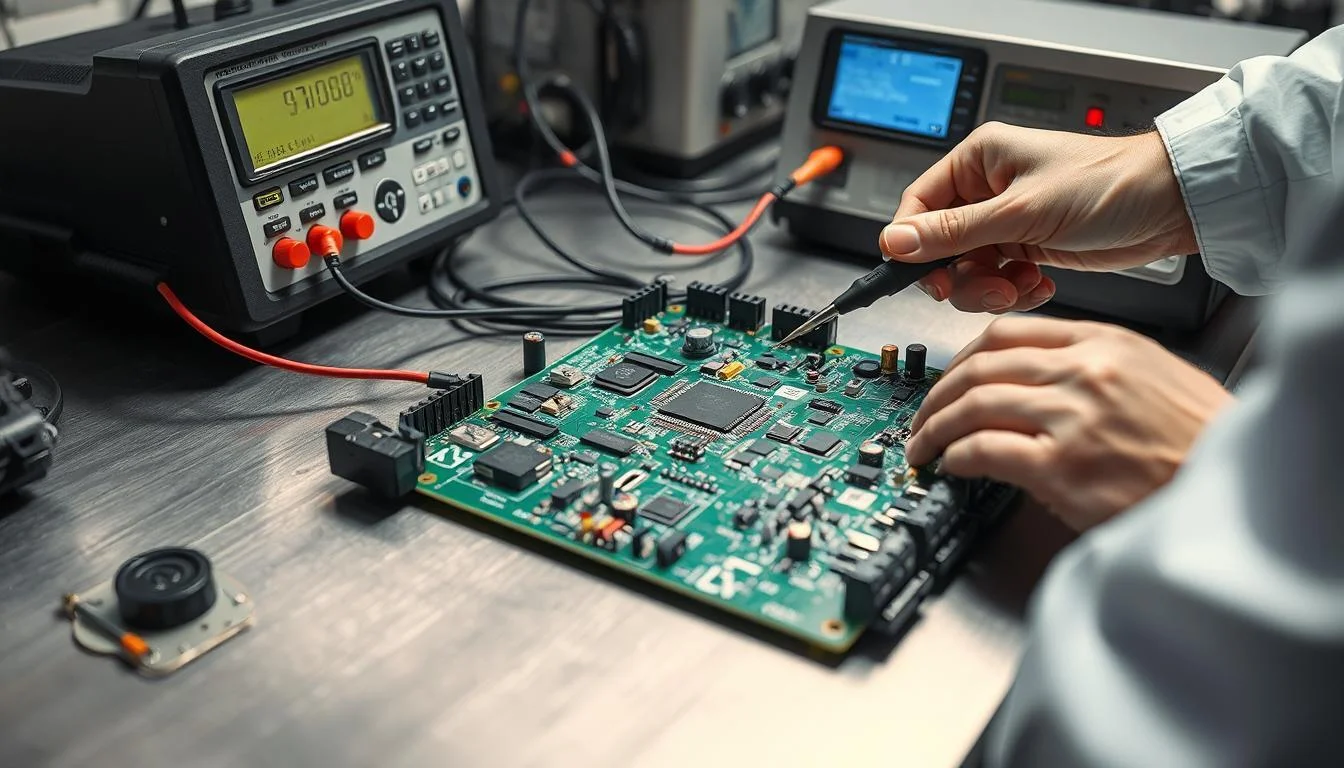

Understanding the Role of PCBA Testing Before Shipment
Functional testing acts as the final checkpoint where assembled boards prove their readiness. We simulate real-world operating conditions to verify every circuit behaves as specified. This phase answers critical questions: Does the product power up correctly? Can it handle peak loads without failure?
Ensuring Quality and Reliability in Electronic Circuits
Comprehensive functional testing evaluates three core aspects:
- Signal integrity across high-speed interfaces
- Proper voltage regulation under dynamic loads
- Correct communication between subsystems
We've seen cases where 12% of boards passed component-level checks but failed system validation. Hidden issues like timing mismatches or firmware conflicts only surface during full board activation.
Clear design documentation proves essential. When manufacturers understand your performance thresholds, they create targeted test scripts. A medical device client reduced field failures by 68% after aligning their test protocols with actual clinical usage patterns.
"Functional testing isn't just about passing specs – it's about surviving Monday morning in your customer's workplace."
This validation step prevents 92% of defect-related returns by catching:
- Intermittent connection issues
- Marginal components nearing tolerance limits
- Software-hardware integration flaws
Investing in rigorous testing upfront protects your brand from costly recalls while delivering quality that keeps clients coming back.
Advanced PCB Testing Techniques and Tools
Modern electronics demand smarter validation methods as component density increases. Two powerful approaches dominate post-assembly verification: in-circuit testing (ICT) and boundary-scan analysis. These methods catch errors that slip past visual inspections, ensuring your boards meet strict performance thresholds.
In-Circuit Testing (ICT) with Flying Probe and Test Fixtures
Flying probe systems revolutionize flexibility in low-volume production. Four to eight movable probes scan boards like mechanical spiders, checking resistance, capacitance, and shorts across multiple layouts. Software adapts the test patterns in hours – perfect for prototypes or mixed product lines.
High-volume manufacturers often prefer test fixtures with custom "bed-of-nails" setups. These fixtures press hundreds of spring-loaded pins against predefined test points, completing full scans in seconds. While faster, they require substantial upfront investment and struggle with design changes.
| Testing Method | Flexibility | Speed | Cost |
|---|---|---|---|
| Flying Probe | High | Medium | Low setup |
| Test Fixture | Low | High | High initial |
Functional and Boundary-Scan Testing Processes
When physical access proves impossible, boundary-scan testing takes over. This method uses embedded test cells in ICs to verify connections through a 4-wire interface. We've seen it reduce test point requirements by 80% in complex automotive control modules.
"The best test systems adapt to your designs, not the other way around." – Manufacturing Engineer, Tier 1 EMS Provider
Functional testing puts assembled boards through real-world scenarios. Power cycling, signal integrity checks, and subsystem communication tests simulate actual operating conditions. Combined with boundary-scan, this approach catches 94% of integration flaws before shipment.
Collaborative Approaches for Enhanced PCB Testing
Success in modern electronics hinges on seamless teamwork between creators and builders. When designers and manufacturers align early, they prevent 78% of post-production issues linked to testability gaps.
Real-Time Manufacturer and Designer Collaboration
Your PCB design might need strategic adjustments to enable thorough validation. Common modifications include:
- Adding test access points
- Optimizing component placement
- Specifying boundary-scan chains
Traditional email exchanges cause version conflicts and delays. We implement shared digital workspaces where both teams review design changes instantly. This approach cut revision cycles by 41% for a robotics client last quarter.
Integrating Cloud-Based Data Management Solutions
Cloud platforms transform how teams handle data during PCB design services. All stakeholders access:
- Real-time ECAD/MCAD synchronization
- Test requirement documentation
- Approval workflows with audit trails
One medical device maker reduced development time by 33% using these systems. Engineers resolved mechanical interference issues affecting test probes during initial design process phases.
"Shared visibility prevents costly 'gotcha' moments at final inspection."
These collaborative tools maintain design integrity while ensuring full test coverage. Your team gains confidence that manufacturing adjustments won't compromise performance – just enhance quality assurance.
Industry Trends and Best Practices in Electronics Quality Assurance
Electronics innovation races forward, demanding smarter quality strategies. Manufacturers now face surface mount components smaller than grain particles and ball grid array packages with hidden connections. These advancements require rethinking traditional validation approaches.
Specialized Solutions for Cutting-Edge Designs
High-density printed circuit boards leave no room for guesswork. We deploy custom test fixtures that adapt to your unique layouts, combining flying probes with AI-powered optical systems. This hybrid approach catches 98% of defects in complex configurations.
Functional testing hardware evolves alongside your product needs. Our engineers continuously update software to handle new communication protocols and power delivery standards. Real-time data from production lines feeds back into test development, creating a closed-loop improvement cycle.
Supply chain transparency proves critical. We maintain direct partnerships with component suppliers to authenticate materials and secure alternative sources. This vigilance prevents counterfeit parts from compromising your electronics reliability.
Your success hinges on choosing partners who invest in tomorrow's testing methods today. Our facilities combine automated ICT platforms with manual expertise for niche applications. Together, we ensure every board meets its performance potential – no matter how intricate the design.
FAQ
Why is PCBA testing critical before shipping electronic products?
We prioritize pre-shipment testing to identify defects like short circuits or faulty solder joints early, ensuring your products meet performance standards. This step minimizes field failures and protects your brand’s reputation by delivering reliable electronics.
How does automated optical inspection improve PCB quality control?
AOI systems use high-resolution cameras to scan surface mount components and solder joints, detecting issues like misalignments or insufficient solder. This method reduces human error and accelerates inspection for high-volume production runs.
What advantages do flying probe tests offer compared to traditional fixtures?
Flying probe testing eliminates the need for custom test fixtures, making it cost-effective for prototypes or low-volume batches. It verifies connectivity and electrical performance on complex boards with dense component layouts.
How does real-time collaboration enhance PCB testing outcomes?
Direct communication between designers and manufacturers during the design process allows rapid adjustments to testing protocols. Cloud-based data sharing ensures alignment on quality benchmarks, reducing rework delays.
Can functional testing simulate real-world operating conditions?
Yes. Functional tests activate the PCB under controlled environments to validate power consumption, signal integrity, and thermal performance. This mimics end-use scenarios to ensure reliability before deployment.
What challenges do high-density PCB designs pose for testing?
Miniaturized components like ball grid arrays (BGAs) require advanced tools like X-ray inspection to examine hidden solder joints. We adapt testing strategies to address accessibility issues without compromising evaluation accuracy.
