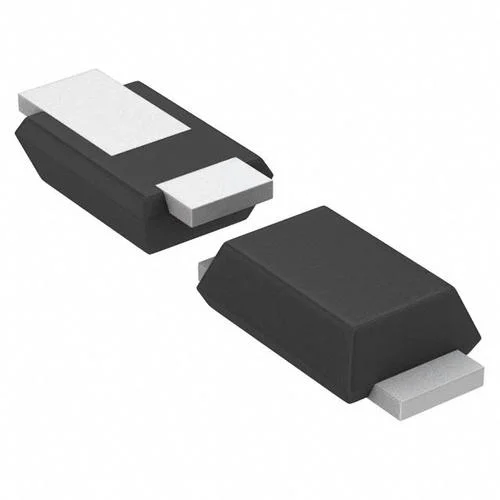

Schottky diodes, the unsung heroes of the semiconductor world, are at the heart of countless electronic devices we use every day. But what exactly are these Schottky diodes, and what makes them so unique and valuable? In this blog post, we’ll dive deep into the fascinating world of the Schottky diode, exploring their construction, working principles, applications, advantages, and limitations. By the end, you’ll be well-equipped to appreciate the incredible impact these tiny components have on modern electronics.
Key Takeaways
- Schottky diodes feature a metal-semiconductor junction, low forward voltage drop and fast switching capabilities.
- They are unipolar devices with advantages such as no reverse recovery time, making them suitable for many applications including power rectification, RF mixers and detectors and solar cell systems.
- Limitations include low reverse voltage ratings & high leakage current but they remain popular due to their advantages.
Understanding Schottky Diodes
Schottky diodes, also known as Schottky barrier diodes or hot carrier diodes, are characterized by their metal-semiconductor junction, low forward voltage drop, and fast switching capabilities. These traits make Schottky diodes suitable for numerous applications, setting them apart from traditional PN-junction diodes. The key to understanding Schottky diodes lies in the unique metal-semiconductor junction, formed when a metal is joined with an N-type semiconductor. By incorporating the hot carrier diode into the design, engineers can further optimize the performance of these devices.
Schottky diodes distinguish themselves from typical PN-junction diodes by offering lower forward voltage drops and quicker switching abilities. When connected in a forward direction, the forward voltage drop of a Schottky diode is approximately 0.4V, which is significantly lower than that of a PN-junction diode. This enables higher switching speeds and improved system efficiency, making Schottky diodes a popular choice for a wide range of applications.
The Schottky Barrier
At the heart of every Schottky barrier diode is the Schottky barrier, a potential energy barrier for electrons created at the metal-semiconductor junction. The performance of the diode is influenced by the unique depletion region formed by this barrier.
In the case of a forward biased Schottky diode:
- The barrier height determines the presence of a depletion region.
- The region accounts for the diode’s low forward voltage drop.
- This leads to enhanced switching speeds and efficiency.
- Schottky diodes outperform traditional PN-junction diodes.
Unipolar Nature of Schottky Diodes
Unlike PN-junction diodes, which are bipolar devices, Schottky diodes are unipolar devices, relying solely on majority carriers for conduction. This unipolar nature gives Schottky diodes a distinct advantage: they have no reverse recovery time, making them faster than PN-junction diodes. In fact, their speed is only limited by the junction capacitance.
The forward voltage drop for a Schottky diode typically ranges from 0.2 to 0.3 volts, which is significantly lower than that of a PN-junction diode. Such a reduced forward voltage drop paves the way for greater efficiency and swift switching speeds, positioning Schottky diodes as a go-to choice for a multitude of applications.
Schottky Diode Construction and Symbol
The construction of a Schottky diode entails connecting a metal electrode to an N-type semiconductor, creating a metal-semiconductor junction. The unique properties of the Schottky diode, including its low forward voltage drop and rapid switching capabilities, are attributed to this junction.
To differentiate Schottky diodes from traditional PN-junction diodes, a unique schottky diode symbol is used, derived from the conventional diode circuit symbol. This symbol indicates the anode as the metal and the cathode as the N-type semiconductor, helping to easily identify Schottky diodes in electronic circuits.
Working of Schottky Diodes
Schottky diodes function by permitting current flow in a forward-bias state and assuming the role of an open switch when reverse-biased. Due to their metal-semiconductor junction, they can switch faster than traditional PN-junction diodes, making them highly desirable in various applications.
Forward Bias Operation
In forward bias operation, Schottky diodes allow current flow when the applied voltage is greater than the barrier height, which is typically around 0.2V. Such a low turn-on voltage paves the way for quicker switching speeds and enhanced efficiency, surpassing PN-junction diodes.
The forward voltage drop of a Schottky diode is much lower than that of a PN-junction diode. It is thus important to take this into account. This low forward voltage drop contributes to the diode’s overall efficiency and makes it a popular choice for a wide range of applications.
Reverse Bias Operation
Reverse bias operation in Schottky diodes initially stops current flow, as an increasing reverse voltage causes the depletion width to expand and inhibit the reverse saturation current.
However, excessive reverse bias voltage can cause damage to the device. Being mindful of the potential risks linked to excessive reverse bias voltage is crucial as it could lead to a breakdown or irreversible damage to the Schottky diode. Understanding the limitations of these diodes is essential for their safe and effective use in various applications.
Applications and Advantages of Schottky Diodes
Thanks to their low forward voltage drop and fast switching capabilities, Schottky diodes find usage in numerous applications, including power rectification, RF mixers and detectors, and solar cell systems.
In the following sections, we will explore these applications in greater detail, highlighting the advantages and benefits of using Schottky diodes.
Power Rectification
Schottky diodes are known to offer high efficiency and consume less power in rectification applications, credited to their low forward voltage drop. This makes them an ideal choice for various power conversion applications, including:
- Converting an alternating current (AC) input into a direct current (DC) output
- Solar power systems
- Battery charging circuits
- Power supplies
- Voltage regulators
The high efficiency and low power dissipation of Schottky diodes make them a popular choice for power supply designs, where minimizing power losses and ensuring optimal performance is critical.
RF Mixers and Detectors
Owing to their impressive switching speed and frequency capabilities, Schottky diodes find use in various applications, including:
- RF mixers
- Detectors
- RF communication systems
- Radar systems
- Satellite communication systems
These electronic components are responsible for converting signals from one frequency to another, making them essential in these applications.
In RF mixers and detectors, Schottky diodes offer the following advantages:
- High-performance diode ring mixers
- Efficient conversion of signals across various frequency ranges
- Fast switching speeds
- High frequency capabilities
These qualities make Schottky diodes an ideal choice for these applications.
Solar Cell Systems
In solar cell systems, Schottky diodes are used to prevent reverse current flow and efficiently connect to rechargeable batteries. Their low forward voltage drop and reduced power consumption make them particularly advantageous for renewable energy and solar panel applications, especially when a schottky diode connected setup is utilized.
However, there are some drawbacks to using Schottky diodes in solar cell systems. Their higher cost compared to other types of diodes and their potential performance issues at high temperatures can be limiting factors. Nonetheless, the benefits of Schottky diodes in solar cell systems often outweigh their drawbacks, making them a popular choice for many solar applications.
Limitations and Disadvantages of Schottky Diodes
While Schottky diodes offer numerous advantages, they also have some limitations and disadvantages that must be considered when using them in various applications. A main shortcoming of Schottky diodes is their low reverse voltage ratings, generally not exceeding 50V for silicon-metal Schottky diodes. This limitation can restrict their use in high-voltage applications.
Additionally, Schottky diodes exhibit high reverse leakage current, which can lead to thermal instability and limit the useful reverse voltage to a value below the actual rating.
Despite these drawbacks, Schottky diodes remain a popular choice for many applications due to their unique properties and advantages.
Silicon Carbide Schottky Diodes
Silicon carbide Schottky diodes, providing lower reverse leakage current, increased forward voltage, and the capability to function at elevated temperatures, stand as a marked improvement over the conventional silicon-based Schottky diodes. These advanced diodes are increasingly being used in various applications, providing better performance compared to their silicon counterparts.
The benefits of silicon carbide Schottky diodes extend to their minimal performance degradation at high temperatures, further enhancing their suitability for various applications. Despite their higher cost, silicon carbide Schottky diodes are gaining popularity due to their improved performance and expanded capabilities.
Summary
Throughout this blog post, we’ve delved into the fascinating world of Schottky diodes, exploring their unique characteristics, construction, and working principles. We’ve also discussed the various applications and advantages of Schottky diodes, including their use in power rectification, RF mixers and detectors, and solar cell systems. Despite their limitations and disadvantages, Schottky diodes remain a popular choice for a wide range of applications due to their low forward voltage drop and fast switching capabilities.
As we continue to push the boundaries of electronic technology, the importance of understanding and leveraging the strengths of Schottky diodes cannot be overstated. By harnessing their unique properties and advantages, we can develop more efficient, high-performance devices that will shape the future of electronics and improve our everyday lives.
Frequently Asked Questions
What is the difference between a Schottky diode and a normal diode?
Schottky diodes have a lower forward voltage and faster switching ability than normal diodes, making them ideal for use in low voltage applications such as radio frequency applications and power rectification. They also have higher voltage and current ratings compared to regular PN junction diodes.
Why not always use Schottky diode?
Due to imperfections at the metal-semiconductor interface, Schottky diodes have higher leakage currents which can be reduced by increasing the drift layer thickness but this also increases the ohmic and thermal resistance which is not desirable in power applications, so they are not always suitable.
Can I replace normal diode with Schottky diode?
Yes, you can replace a normal diode with a Schottky diode, as long as the voltage and current ratings are similar and you need lower forward voltage drop. However, Schottky diodes may not be suitable for high-voltage rectification due to their low reverse voltage withstand and small forward voltage drop. SBS diodes have lowish drop but are available in higher voltage ratings.
What do you mean by Schottky?
Schottky is a potential energy barrier at a metal-semiconductor junction, and its primary characteristic is the Schottky barrier height (B). It is used as a rectifying device with applications in solid-state electronics.
What is the Schottky barrier, and how does it affect diode performance?
The Schottky barrier is a potential energy barrier at the metal-semiconductor junction, which influences diode performance by creating a depletion region and determining its presence.
