Capacitors, specifically electronic capacitors, are the unsung heroes of the electronic world. These tiny, yet mighty components play a crucial role in the functionality and performance of countless devices we use daily. Dive into the fascinating universe of capacitors, uncover their inner workings, and discover how to select the perfect electronic capacitor for your project. By the end, you’ll have a newfound appreciation for these essential electronic components.
Short Summary
- Understanding Electronic Capacitors involves recognizing their two terminals, storing electromagnetic energy in the form of an electric field and various types for different applications.
- Selecting the right capacitor requires considering capacitance, maximum voltage, ESR and ESL while also taking into account lead spacing and tolerance.
- Capacitors are used widely across industries such as smartphones, automotive design and power supplies due to their ability to store electrical energy.
Understanding Electronic Capacitors
A capacitor is a passive electrical component that has two terminals. It is capable of storing electromagnetic energy in the form of an electric field. Imagine them as tiny reservoirs, collecting and releasing electric charges as needed. Capacitance is indicated using the parameter- farads (F). It indicates how much electric charge a capacitor can store when a given voltage is applied to its terminals.
Capacitors come in various types, including:
- Tantalum electrolytic
- Ceramic
- Electrolytic
- Film capacitors
Each type has its unique properties and applications.
At their core, capacitors consist of two electrical conductors, typically in the form of metal plates or surfaces separated by a dielectric medium. The dielectric material used in ceramic capacitors is, as the name suggests, ceramic. When a voltage is applied across the terminals of a capacitor, an electric field is generated across the dielectric. This results in a net positive charge accumulating on one plate and a net negative charge on the other plate. No current passes through the dielectric; instead, there is a flow of charge through the source circuit.
Basic Components of a Capacitor
The heart of a capacitor lies in its basic components: the conductors and the dielectric. The conductors, often metal plates or surfaces, are separated by a dielectric medium that prevents the flow of current between them. The choice of dielectric material varies depending on the type of capacitor. Ceramic capacitors, for instance, utilize ceramic as their dielectric material.
The dielectric material plays a crucial role in determining the capacitor’s properties, such as capacitance and voltage rating. Different types of capacitors use different dielectric materials, each contributing to their unique performance characteristics. For example, ceramic capacitors use ceramic as their dielectric, while tantalum electrolytic capacitors use a layer of oxide on a porous tantalum pellet.
How Capacitors Store Electrical Energy
So, how exactly do capacitors store electrical energy? When voltage is applied to a capacitor’s terminals, an electric field forms across the dielectric. This electric field results in a net positive charge accumulating on one plate and a net negative charge on the other. The amount of charge a capacitor can store is determined by its capacitance, which is directly proportional to the surface area of the conductors and the permittivity of the dielectric material, and inversely proportional to the distance between the conductors.
As capacitors store energy in an electric field, they can release this energy when the voltage across their terminals is reduced or removed. This ability to store electrical energy and release it quickly makes capacitors invaluable in a wide range of applications, including:
- Smoothing voltage fluctuations in power supplies
- Providing a burst of power in camera flashes
- Storing energy in hybrid and electric vehicles
- Filtering noise in audio circuits
- Timing and oscillating circuits in electronic devices
Capacitors are versatile components that play a crucial role in many electronic systems.
Comparing Different Types of Capacitors
With so many types of capacitors available, how do you choose the right one for your project? To make an informed decision, it’s essential to understand the differences between the following types of capacitors:
- Tantalum electrolytic capacitors
- Ceramic capacitors
- Electrolytic capacitors
- Film capacitors
Each type of capacitor has its unique properties and applications, determined by the materials used in their construction.
Tantalum electrolytic capacitors, for example, are known for their low ESL, ESR, and large capacitance, making them ideal for automotive equipment, LCD displays, and portable electronic equipment. Ceramic capacitors, on the other hand, are cost-effective and reliable, with applications ranging from basic filtering tasks to high-frequency RF circuits.
Understanding the characteristics and applications of each capacitor type is crucial in selecting the right one for your project.

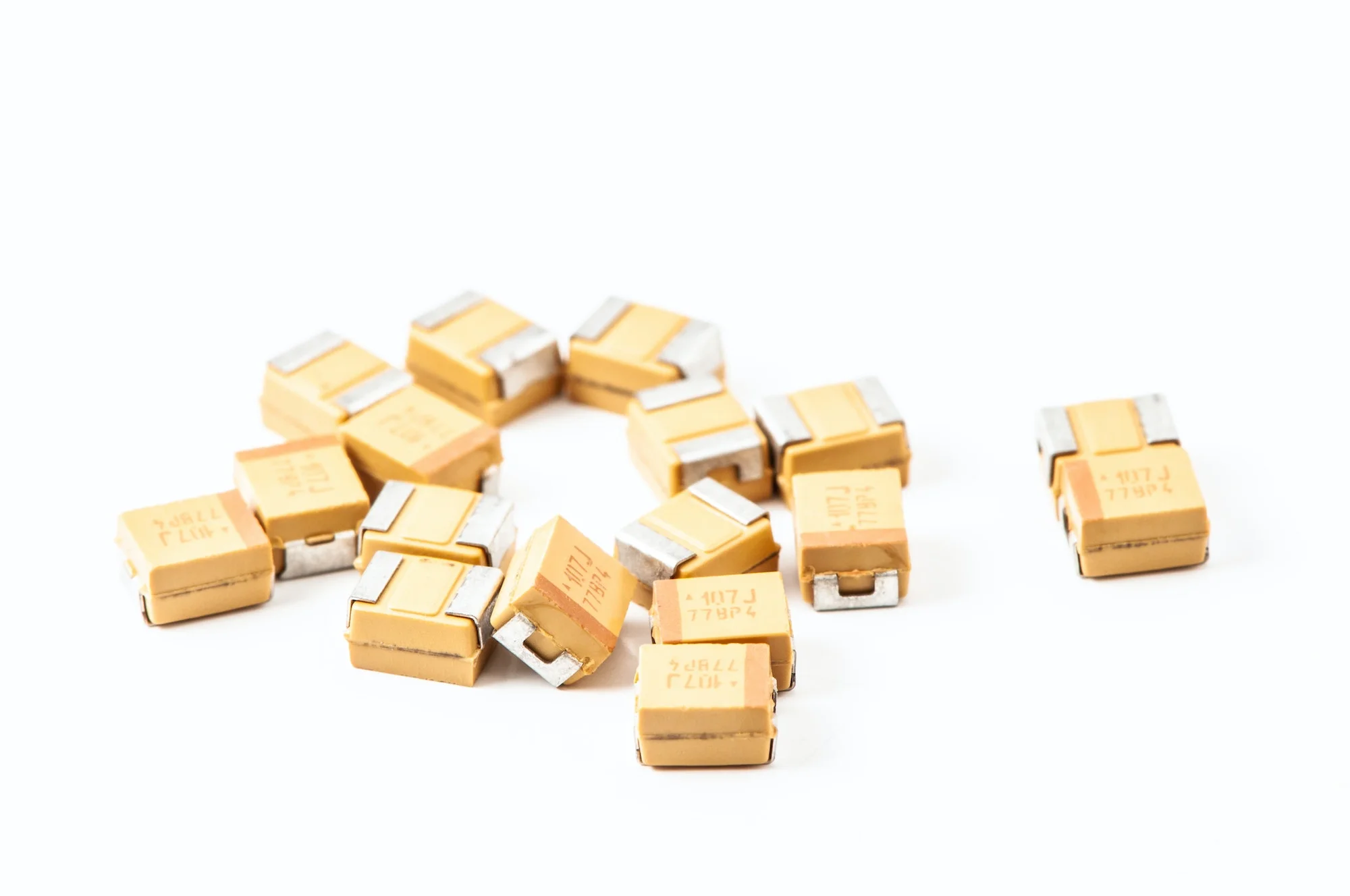

Tantalum Electrolytic Capacitors
Tantalum electrolytic capacitors stand out for their:
- Compact size
- High capacitance
- Low equivalent series inductance (ESL)
- Low equivalent series resistance (ESR)
They consist of a pellet of porous tantalum metal, with a layer of oxide acting as the dielectric material. These capacitors are renowned for their high-performance capabilities.
Due to their desirable properties, tantalum electrolytic capacitors find applications in various industries. They are primarily used in automotive equipment, LCD displays, and portable electronic equipment, where their compact size and high capacitance are invaluable.
However, it’s important to note that tantalum capacitors are more expensive than some other capacitor types, so their use should be justified by the specific requirements of your project.
Ceramic Capacitors
Ceramic capacitors are a popular choice in the world of electronics due to their reliability and cost-efficiency. As the name suggests, these capacitors utilize a ceramic material as their dielectric, which is sandwiched between metal plates or surfaces. Ceramic capacitors are available in various types, such as multilayer ceramic capacitors (MLCC) and ceramic disc capacitors, each with its unique set of properties and applications.
Ceramic capacitors find use in a wide range of applications, from basic filtering tasks to high-frequency RF circuits. They are suitable for most electronic applications thanks to their versatile dielectric properties, capacitance, and voltage ratings. It’s essential to consider these factors when selecting a ceramic capacitor for your project.
Electrolytic Capacitors
Electrolytic capacitors are a type of capacitor that utilizes an electrolyte to achieve higher capacitance compared to other capacitor types. These capacitors are polarized, meaning they have a designated positive (anode) and negative (cathode) terminal. The anode is typically made of metal, such as aluminum or tantalum, and forms an insulating oxide layer through anodization. The cathode, on the other hand, is made of a liquid or semi-liquid electrolyte.
Electrolytic capacitors are widely employed in various applications, including:
- Power supplies
- Audio equipment
- Automotive design
- Smartphones and other electronic devices
They offer high capacitance in a relatively small package, making them ideal for applications requiring significant energy storage or filtering capabilities, while being rohs compliant.
Film Capacitors
Film capacitors are electronic components utilized in both DC and AC microelectronic and electronic applications. They are cost-effective and have an indefinite shelf life, making them a popular choice for many projects. Film capacitors come in various types, such as polypropylene film capacitors, plastic film capacitors, and polymer film capacitors, each offering different performance characteristics.
When searching for film capacitors, it’s essential to consider the following factors:
- Rated voltage
- Style
- Capacitance
- Lead spacing
- Packaging type
- Tolerance
By understanding these parameters and the specific requirements of your project, you can select the most suitable film capacitor for your application.
Selecting the Right Capacitor for Your Project
With a vast array of capacitor types and applications, selecting the right capacitor for your project can seem daunting. It’s essential to consider the specific requirements of your project, such as:
- Capacitance
- Maximum voltage
- Equivalent series resistance (ESR)
- Equivalent series inductance (ESL)
By understanding these factors and the characteristics of each capacitor type, you can make an informed decision and choose the ideal capacitor for your project.
Keep in mind that the optimal capacitor for your project may not always be the most expensive or highest-performance option. Sometimes, a more cost-effective choice, such as a ceramic or film capacitor, may be more suitable for your needs. Consider all factors, including cost, performance, and application requirements, to make the best decision for your project.
Determining Capacitance Requirements
To determine the capacitance needed for your specific application, consider the purpose and requirements of your project. The capacitance necessary will depend on factors such as the amount of energy storage needed, the maximum voltage, and the equivalent series resistance (ESR) and equivalent series inductance (ESL). The formula for determining capacitance is C = Q/V, where C represents the capacitance, Q denotes the charge, and V denotes the voltage.
By understanding your project’s specific requirements and using the capacitance formula, you can select the appropriate capacitor type and capacitance value for your application. Remember to consider other factors, such as voltage rating and tolerance, to ensure the optimal performance of your capacitor.
Understanding Voltage Ratings
Voltage ratings are a crucial factor to consider when selecting a capacitor for your project. The voltage rating refers to the maximum voltage that a capacitor can safely handle without experiencing damage or failure. It’s essential to select a capacitor with a voltage rating that is greater than the maximum voltage of your project to avoid potential issues and ensure the capacitor’s longevity.
Different types of capacitors have varying voltage ratings, depending on their construction and intended use. When comparing capacitor types, consider their voltage ratings in relation to your project’s requirements to ensure you select the most suitable capacitor for your application.
Considering Lead Spacing and Tolerance
When selecting a capacitor, it’s important to consider factors such as lead spacing and tolerance. Lead spacing, measured in millimeters or inches, refers to the distance between the leads of a capacitor, which is essential for proper installation and connection on a circuit board. Tolerance, on the other hand, indicates the amount of variation in the capacitance value.
Choosing a capacitor with appropriate lead spacing and tolerance ensures that it can be correctly installed and function as intended in your project. By understanding these factors and considering the specific requirements of your application, you can select the best-suited capacitor for your needs.
Real-World Applications of Capacitors
Capacitors are not just theoretical components; they have a plethora of real-world applications, like smartphones, automotive design, and power supplies. These versatile components are indispensable in countless devices and systems, thanks to their ability to store and release electrical energy as needed.
Let’s explore some of the practical applications of capacitors in detail. By understanding the various uses of capacitors in real-world applications, you can appreciate their importance in our daily lives and better comprehend how to select the right capacitor for your project.
Whether it’s powering your smartphone or ensuring the smooth operation of your car, capacitors play a crucial role in the functionality and performance of countless devices and systems.
Capacitors in Smartphones
Our smartphones are packed with a multitude of electronic components, and capacitors play a critical role in their operation. They serve various functions, such as:
- Energy storage
- Filtering and decoupling
- Voltage regulation
- Timing and oscillation
- Signal coupling
Different types of capacitors, like tantalum electrolytic, ceramic, electrolytic, and film capacitors, are utilized in smartphones to cater to their specific requirements.
From powering the processor to ensuring the smooth operation of the display and camera, capacitors are the unsung heroes keeping your smartphone running efficiently. Next time you use your smartphone, remember the tiny, yet mighty capacitors working behind the scenes to make it all possible.
Automotive Design and Capacitors
Capacitors play a significant role in automotive design, impacting vehicle performance and functionality. They serve a multitude of functions in vehicles, such as powering the engine, lighting, audio system, and even storing energy for the vehicle’s electrical system. Capacitors in automotive design are utilized in various systems, such as ADAS features, high reliability applications, regenerative braking systems, radio interference suppression, and improving efficiency in mass transit systems.
By understanding the importance of capacitors in automotive design, you can appreciate their impact on the performance of your vehicle. From powering essential systems to supporting cutting-edge vehicle features, capacitors are a vital component in modern automotive design.
Power Supplies and Capacitors
Capacitors are essential components in power supply systems. They play a vital role in regulating the flow of electricity and storing energy, ensuring the smooth operation of various electronic devices. The types of capacitors commonly used in power supplies include:
- Tantalum electrolytic capacitors
- Ceramic capacitors
- Electrolytic capacitors
- Film capacitors
Capacitors in power supplies serve a variety of functions, such as:
- Supplying power to the circuit
- Providing power to the load
- Supplying power to the output
- Storing energy for the power supply’s voltage regulation system
By understanding the importance of capacitors in power supply systems, you can appreciate their critical role in ensuring the reliable operation of countless electronic devices and systems.
Summary
Capacitors are the unsung heroes of our electronic world, playing an essential role in the functionality and performance of countless devices and systems. By understanding the different types of capacitors, their basic components, and how they store electrical energy, you can make an informed decision when selecting the right capacitor for your project. Whether you’re working on a smartphone, automotive design, or power supply system, capacitors are indispensable in ensuring the smooth operation of your project. Embrace the mighty power of these tiny components and unlock their full potential in your next project.
Frequently Asked Questions
How do I know if my electronic capacitor is bad?
To determine if an electronic capacitor is bad, use a multimeter to check the capacitance reading and compare it to the value printed on the capacitor itself. If the reading is significantly lower or zero, the capacitor is dead.
Additionally, check for bulging tops or high ESR values which indicate failure.
How do you choose a capacitor for an electronic circuit?
When choosing a capacitor for an electronic circuit, one should consider factors such as capacitance, voltage rating, leakage current rating, temperature ratings, equivalent series resistance, reverse voltage rating, frequency, operating losses and operating lifespan.
Different types of capacitors, like ceramic, tantalum, aluminum electrolytic or film capacitors, are also available, each with their own properties to consider.
How long do electronic capacitors last?
Electronic capacitors generally last anywhere from 1,000 to 10,000 hours depending on the design lifetime and ambient temperature.
How should capacitors be stored?
Capacitors should be stored in their original packaging, and for longer periods a dry nitrogen storage atmosphere is recommended to avoid oxidation of metallized surfaces and Solderability degradation.
How do capacitors store electrical energy?
Capacitors store electrical energy by using an electric field to generate a positive charge on one plate and a negative charge on the other.
This process is known as electrostatic capacitance, and it is used in a variety of applications, from power supplies to signal processing. It is also used in many consumer electronics, such as televisions, computers, and other consumer electronics.
