In an era where technology continues to advance rapidly, reed relays have become an essential component in various applications and industries. Their unique characteristics and versatility make them a popular choice for a wide range of uses. In this blog post, we’ll delve into the world of reed relays, exploring their types, components, advantages, disadvantages, and applications. By the end of this journey, you’ll have a comprehensive understanding of reed relays and their importance in today’s technological landscape, with a focus on the keyword “reed relay.”
Key Takeaways
- Reed relays are composed of a reed switch, glass envelope and coil to provide reliable control.
- They come in 3 types with distinct advantages and disadvantages for specific applications.
- Selecting the right one requires consideration of load requirements, operating environment & performance characteristics.
Understanding Reed Relays
Reed relays are a type of electrical relay based on Reed Technology, which leverages a magnetic field to facilitate the switching operation, unlike an electromechanical relay. These relays are composed of switch contacts enclosed within a solenoid, making them distinct from solid-state and electromechanical relays. Reed relays are available in several forms, including Form A (Normally Open), Form B (Normally Closed), and Form C (Changeover), as well as latching relay options. They offer various benefits, such as low power consumption, cost-effectiveness, and compactness, but also have some drawbacks, such as magnetic coupling that can diminish sensitivity and necessitate higher voltage for secure switching.
Reed Technology operates on the principle of magnetic field control over the switching process. The introduction of a magnetic field to the reed switch contacts aligns them magnetically, prompting them to move together and establish contact. This results in a smooth, efficient, and reliable switching operation.
Reed Relay Components

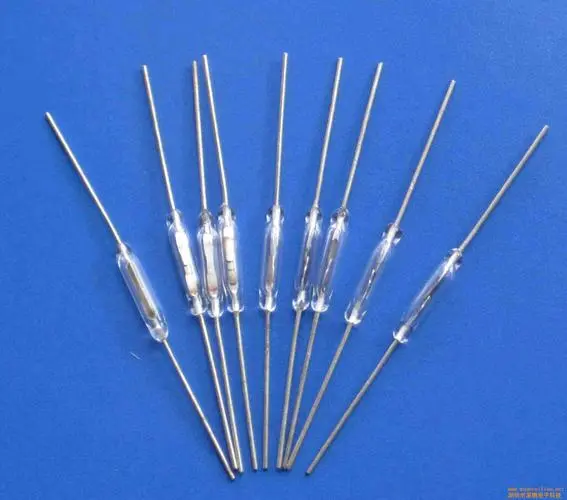

The primary components of a reed relay consist of a reed switch, glass envelope, and coil, which are different from solid-state relays. The reed switch, housed within a glass envelope, serves as the core of the relay, and the coil is responsible for generating the magnetic field necessary for switching. The glass envelope provides a hermetic seal, protecting each reed switch from moisture and other contaminants, which is essential for relays with multiple contacts.
The performance of a reed relay hinges on the conditions within its glass envelope. Often filled with nitrogen, the envelope helps prevent wear and oxidation, and aids in spark quenching, facilitating a dependable control signal. The sealed environment within safeguards the fragile reed switch contacts, enhancing the relay’s durability and reliability.
How Reed Relays Work
The operation of reed relays involves the following steps:
- The introduction of a magnetic field near the reed switch contacts.
- This causes the contacts to align magnetically and move together, establishing contact.
- The relay coil, energized by an electrical current, generates the magnetic field.
- As the coil is de-energized, the magnetic field disappears, returning the contacts to their original position.
This on-off switching mechanism, known as a single pole double throw, enables reed relays and solid state relay to manage electrical circuits with speed and precision using reed switches, such as those found in telephone exchanges.
Reed relays come in several types, each with distinct advantages and disadvantages. The different types of reed relays are:
- Form A relays: These relays have normally open contacts.
- Form B relays: These relays have normally closed contacts.
- Form C relays: These relays have changeover contacts.
Each relay type serves a unique purpose and is more appropriate for specific applications. The selection of a reed relay is determined by factors like load requirements, operating environment, and performance traits.
Types of Reed Relays
There are three main types of reed relays: Form A (Normally Open), Form B (Normally Closed), and Form C (Changeover). Each type serves a specific purpose and is better suited for certain applications.
The upcoming sections will delve into the specifics of each of these types, highlighting their unique features, advantages, and limitations.
Form A (Normally Open)
A Form A reed relay is a type of reed relay that features a normally open contact. This means that the contacts of the relay are in an open state when the coil of the relay is not energized or when there is no magnetic field present. When current passes through the coil, a magnetic field is generated, closing the contacts and switching the relay on. Once the current is switched off, the switch turns off. Consequently, the contacts go back to their original position i.e. open state..
Form A reed relays offer several advantages, such as low power consumption, cost-effectiveness, and compactness. However, they are limited in terms of current and voltage ratings, and they require a magnetic field to activate the relay. These limitations may affect their suitability for certain applications.
Form B (Normally Closed)
A Form B reed relay is a type of reed relay that features normally closed contacts. This means that the contacts of the relay remain in a closed state when not actuated by an external magnet or coil. Upon actuation, the contacts open, breaking the circuit. When the coil is de-energized, the relay switches back to its closed, or off position.
Form B reed relays are dependable, economical, and boast a lengthy life span. They are straightforward to utilize and require minimal upkeep. Some common applications for Form B reed relays include test and measurement equipment, medical devices, and automotive systems.
Form C (Changeover)
Form C reed relays are a type of relay that can switch between two different circuits and are frequently utilized in safety-critical applications. They are constructed with three contact leads, two of which are typically open and one that is typically closed. When the relay is activated, the typically open contacts close and the typically closed contact opens, allowing the current to pass through the circuit.
Form C reed relays are commonly employed in safety-critical systems, including medical devices, automotive systems, and test and measurement equipment. These relays offer a high degree of reliability and versatility, making them suitable for a wide range of applications.
Advantages and Disadvantages of Reed Relays
Reed relays offer several advantages compared to other types of relays, such as reliability, low contact resistance, and complete isolation. They are hermetically sealed, providing a protective layer from dust, dirt, and other contaminants, ensuring a long, wear-free lifespan. Additionally, reed relays can switch zero voltage and current, with lower leakage current and capacitance than semiconductor relays. These advantages make reed relays suitable for various applications, such as test and measurement, medical devices, and automotive systems.
However, reed relays have some drawbacks, including lower current and voltage ratings compared to other types of relays, such as electromechanical and solid-state relays. These limitations may affect the suitability of reed relays for certain applications, particularly those that require higher current and voltage capabilities.
A balanced consideration of both the merits and drawbacks of reed relays is crucial when choosing the suitable relay for a specific application.
Pros of Reed Relays
Reed relays are known for their small size, fast switching, and low power consumption, making them an attractive option for various applications. Their hermetically sealed construction protects the delicate reed switch contacts and contributes to their long life and reliability. The ability to switch zero voltage and current enables them to be employed in applications where other types of relays are not suitable, and their lower leakage current and capacitance provide greater efficiency and reliability.
These advantages make reed relays a popular choice for a wide range of industries and applications. For example:
- In test and measurement equipment, their accuracy and reliability are crucial for ensuring precise results.
- In medical devices, their isolation and safety features are essential to protect patients and sensitive equipment.
- In automotive systems, their compact size and low power consumption make them an ideal solution for managing various functions within the vehicle.
Cons of Reed Relays
Despite their numerous advantages, reed relays also have some drawbacks. One of the main disadvantages is their lower current and voltage ratings compared to other types of relays, such as electromechanical and solid-state relays. These limitations can affect the suitability of reed relays for certain applications, particularly those that require higher current and voltage capabilities.
Another potential drawback is the sensitivity of reed relays to external magnetic fields. This sensitivity can lead to unintended switching or contact closures, particularly in applications where strong magnetic fields are present. To minimize the impact of external magnetic fields, it is crucial to carefully consider the placement and shielding of reed relays within the system.
Considering these factors helps mitigate reed relay limitations, enabling their optimal performance in a variety of applications.
Applications of Reed Relays
Reed relays are widely used in a variety of industries and applications, including test and measurement, medical devices, and automotive systems. Their unique characteristics and versatile performance make them an excellent choice for meeting the diverse requirements of these applications.
The subsequent sections will delve into the distinct applications of reed relays in these industries, along with the associated pros and cons of their use.
Test and Measurement
Reed relays play an essential role in test and measurement equipment, where their accuracy and reliability are of utmost importance. They are used in various test and measurement applications, such as routing high voltage signals, charging or discharging test circuits, and isolating components in IC testing. Additionally, they are employed in hi-tech testing equipment, including semiconductor testing, HV insulation testing, and mass spectrometers.
The benefits of utilizing reed relays in test and measurement applications include:
- Dependability
- Precision
- Long life span
- Cost-effectiveness
- Minimal upkeep
These qualities make reed relays an attractive option for various testing equipment, and such relays are widely used in the industry.
However, they are not ideal for high-speed switching and can be influenced by external magnetic fields. Hence, the selection and positioning of reed relays in test and measurement applications should be thoughtfully considered.
Medical Devices
Reed relays are an integral component in many medical devices, where their isolation and safety features are essential for protecting patients and sensitive equipment. They are used in a variety of medical devices, such as:
- Pace-makers
- Neuro-stimulators
- Hearing aids
- Pill-cams
- Defibrillators
- Electrosurgical generators
- Diagnostic equipment
- X-ray and EKG machines
- Other high-voltage medical equipment
The benefits of using reed relays in medical devices include:
- High reliability
- Compact size
- Low power consumption
- Hermetically sealed construction to prevent contaminants from compromising the relay’s performance.
However, like any electronic component, careful contemplation of the specific requirements of the medical device and its operational environment is necessary when choosing a reed relay.
Automotive Systems
In the automotive industry, reed relays are utilized in a variety of systems, particularly in hybrid and electric vehicles. They are employed for tasks such as:
- Level sensing
- ABS
- Cruise control
- Door and window position sensing
- Fuel injection
- Ignition
- Safety control
In addition, they are utilized in high voltage applications, such as EV battery management and solar systems.
Reed relays provide a reliable and cost-effective solution for automotive systems due to their small size, low power consumption, and resistance to shock and vibration. However, their limited switching capacity should be taken into consideration when selecting the right reed relay for a particular application. By carefully evaluating the specific requirements of the automotive system, engineers can choose the most appropriate reed relay for optimal performance.
Selecting the Right Reed Relay
Choosing the appropriate reed relay for a specific application requires careful consideration of factors such as load requirements, operating environment, and performance characteristics.
The upcoming sections will delve into each of these factors in depth, offering guidance on how to choose the most suitable reed relay for your unique needs.
Load Requirements
Determining the necessary current and voltage ratings for a reed relay is an essential step in the selection process. The load requirements for a reed relay can vary depending on the application, but typically they require between 10 and 110 ampere-turns (AT). It is important to take into account the voltage and current requirements of the load when selecting a reed relay, as this will ensure that the relay can handle the necessary power and operate efficiently within the system.
In addition to current and voltage ratings, other factors to consider include the input voltage, power consumption, and load circuits of the application. By carefully evaluating these factors, engineers can select a reed relay that meets the specific load requirements of their application, ensuring optimal performance and reliability.
Operating Environment
The operating environment in which a reed relay is used can have a significant impact on its performance and reliability. Factors such as temperature and humidity can influence the relay’s ability to function properly, so it is crucial to consider these environmental conditions when selecting a reed relay.
Reed relays are hermetically sealed, making them suitable for operation in almost any environment, including those with flammable gas or corrosive elements. Furthermore, they are designed to be wear-free and can withstand dirt, dust, and grime, ensuring a long lifespan of switching.
However, it is still important to carefully consider the specific environmental conditions in which the relay will be used to ensure optimal performance and longevity.
Performance Characteristics
Several performance characteristics should be considered when choosing a reed relay for a specific application, such as:
- Switching speed: Reed relays have a rapid switching speed, usually in the range of 10-100 microseconds, making them suitable for applications that require fast and precise control.
- Contact resistance: Reed relays typically have a low contact resistance, ranging from 0.1 to 1 ohm, ensuring efficient operation and minimal power loss.
- Life expectancy: The life expectancy of a reed relay depends on factors such as the number of switching cycles and the operating conditions. It is important to choose a relay with a suitable life expectancy for the intended application.
Considering these performance characteristics will help ensure that the chosen reed relay meets the requirements of the application.
The expected lifespan of a reed relay is another important factor to consider, as it can have a significant impact on the overall reliability and cost-effectiveness of the system. Reed relays are known to have a long life expectancy, usually ranging from 10 million to 100 million operations.
By carefully evaluating these performance characteristics and their relevance to the specific application, engineers can select the most appropriate reed relay for optimal performance, reliability, and longevity.
Summary
In conclusion, reed relays are versatile and reliable components that play an essential role in a wide range of industries and applications. By understanding their unique characteristics, types, advantages, and disadvantages, engineers can make informed decisions when selecting the appropriate reed relay for their specific needs. Whether used in test and measurement equipment, medical devices, or automotive systems, reed relays offer a combination of performance, reliability, and cost-effectiveness that makes them an ideal choice for many applications.
Frequently Asked Questions
What is reed relay used for?
Reed relays are commonly used for reliability, accuracy, speed and safety requirements in high cycle count, high voltage, low voltage, low current, and RF switching applications. They are also advantageous in applications requiring extremely low leakage current.
What is the difference between a reed relay and a regular relay?
Reed relays are isolated from the signal path and can switch much faster than regular electromechanical relays, with a longer mechanical lifetime.
How do I know if my reed switch is bad?
To determine if a Reed switch is bad, measure the resistance between the switch and grounding screw with a DC Multimeter; if the resistance is too high, or the switch is “sticking” or “missing”, it is likely faulty.
What is the fundamental principle underlying Reed Technology?
Reed Technology’s fundamental principle lies in its utilization of a magnetic field to switch operations, rather than an electromechanical relay. This creates an efficient and reliable switching process.
What are the primary components of a reed relay?
A reed relay is composed of a reed switch, a glass envelope, and a coil, making it an electromechanical device used to remotely control a circuit.
