PCB Stackup Design Guide: 50Ω Impedance Control in Practice
Meta Description: Master PCB stackup design for 50Ω impedance control. This practical guide covers microstrip vs stripline, impedance formulas, symmetric layer stacks, 4/6/8-layer designs, differential pairs, and IPC-2141A compliance.
Why 50Ω Impedance Control Matters
Every high-speed PCB design lives or dies by signal integrity, and at the heart of signal integrity lies impedance control. When a trace's characteristic impedance doesn't match the source and load impedance, signal reflections occur — causing overshoot, ringing, EMI, and ultimately, data corruption. The industry-standard single-ended impedance target is 50Ω, used in everything from high-speed digital buses to RF systems.
Getting to 50Ω isn't just about picking a trace width. It requires careful PCB stackup design — the arrangement of copper and dielectric layers that determines the electromagnetic environment your signals travel through. A well-designed stackup ensures consistent impedance across all traces, minimizes crosstalk, controls EMI, and produces a manufacturable, warp-free board.
This guide walks through the practical engineering of PCB stackups for 50Ω impedance control, with real formulas, example calculations, and proven layer arrangements for 4-layer, 6-layer, and 8-layer boards.
Microstrip vs Stripline: Two Routing Topologies
Before diving into stackups, you need to understand the two fundamental transmission line structures in PCB design.
Microstrip
A microstrip trace runs on an outer layer, with a reference plane (ground or power) directly beneath it. The field lines travel partly through the dielectric substrate and partly through air above the trace.
Advantages:
- Simpler fabrication — traces on outer layers
- Lower dielectric loss (partially in air)
- Easier to route and rework
- Generally allows wider traces for the same impedance
Disadvantages:
- More susceptible to external EMI
- Radiates more than stripline
- Impedance is affected by solder mask and environmental conditions
Stripline
A stripline trace is sandwiched between two reference planes in an inner layer. All field lines are confined within the dielectric.
Advantages:
- Superior EMI shielding (planes above and below)
- More predictable impedance (no air interface)
- Lower radiation — ideal for high-speed signals
Disadvantages:
- Requires more layers (higher cost)
- Thinner traces for the same impedance (higher loss)
- Harder to rework — buried vias needed for access
The choice between microstrip and stripline often drives the entire stackup architecture. For signals up to ~3 GHz, microstrip is usually sufficient. Above 3 GHz, or when EMI is a concern, stripline becomes the preferred option [1].
Impedance Calculation Formulas
The characteristic impedance of a PCB trace depends on its geometry and the dielectric properties of the substrate. The most commonly used formulas come from the IPC-2141A standard [2].
Microstrip Impedance Formula
For a microstrip trace (surface layer, referenced to a plane below):
Z₀ = 87 / √(εr + 1.41) × ln(5.98 × H / (0.8 × W + T))
Where:
- Z₀ = characteristic impedance (Ω)
- W = trace width (mm)
- H = dielectric height between trace and reference plane (mm)
- T = trace thickness (mm)
- εr = relative permittivity (dielectric constant) of the substrate
Stripline Impedance Formula
For a symmetric stripline (trace centered between two planes):
Z₀ = 60 / √εr × ln(4 × B / (0.67 × π × (0.8 × W + T)))
Where:
- B = total dielectric thickness between the two reference planes (mm)
Worked Example: 50Ω Microstrip on FR-4
Let's calculate the trace width needed for a 50Ω microstrip on a standard 4-layer FR-4 board:
Given:
- εr = 4.3 (standard FR-4)
- H = 0.18 mm (7 mil prepreg between L1 and L2)
- T = 0.035 mm (1 oz copper)
- Target Z₀ = 50Ω
Solving for W:
Using the IPC-2141A microstrip formula:
50 = 87 / √(4.3 + 1.41) × ln(5.98 × 0.18 / (0.8 × W + 0.035))
50 = 87 / √5.71 × ln(1.0764 / (0.8W + 0.035))
50 = 87 / 2.390 × ln(1.0764 / (0.8W + 0.035))
50 = 36.40 × ln(1.0764 / (0.8W + 0.035))
ln(1.0764 / (0.8W + 0.035)) = 1.374
1.0764 / (0.8W + 0.035) = e^1.374 = 3.951
0.8W + 0.035 = 0.2724
W ≈ 0.297 mm (≈ 11.7 mil)
So on a standard 4-layer FR-4 board with 7-mil prepreg, a ~12 mil trace gives you approximately 50Ω. This aligns well with typical fab house recommendations.
Note: These formulas are approximations. For production designs, always verify with a field solver (e.g., Sierra Circuits Impedance Calculator, Altium's built-in solver, or Ansys SIwave) and confirm with your PCB manufacturer's stackup sheet [3].
Symmetric Stackup Design: Avoiding Board Warpage
One of the most critical — and most overlooked — aspects of PCB stackup design is symmetry. A symmetric stackup means the copper distribution and dielectric thicknesses are mirrored around the center of the board. Asymmetric stackups create unequal thermal expansion and contraction between layers, leading to board warpage during lamination, reflow soldering, or thermal cycling.
Rules for Symmetric Stackups
- Mirror copper weights: If L1 is 1 oz copper, L4 (the bottom layer) should also be 1 oz — not 0.5 oz.
- Mirror dielectric thicknesses: The prepreg/core thicknesses above the centerline should mirror those below.
- Balance copper pour: The total copper area on paired layers (L1+L4, L2+L3) should be roughly equal.
- Avoid thick copper on one side only: Heavy copper (2 oz or more) on just the top layer will warp the board.
Warpage Consequences
PCB warpage isn't just a cosmetic issue. A warped board:
- Causes component misalignment during pick-and-place assembly
- Leads to solder joint defects (opens, bridges, tombstoning)
- Makes connector mating difficult or impossible
- Can crack BGA solder balls over thermal cycles
- May violate IPC-A-600 flatness requirements (typically ≤0.75% for standard boards)
IPC-TM-650 method 2.4.22 defines the standard bow and twist measurement. For impedance-controlled boards, maintaining flatness is even more critical because warpage changes the dielectric thickness — which directly shifts the impedance [2].
Standard Stackup Designs: 4, 6, and 8 Layers
4-Layer Stackup (Entry-Level High-Speed)
| Layer | Function | Material | Thickness |
|---|---|---|---|
| L1 | Signal (microstrip) | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.18 mm |
| L2 | Ground plane | Copper 1 oz | 35 µm |
| — | Core | FR-4 core | 0.71 mm |
| L3 | Power plane | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.18 mm |
| L4 | Signal (microstrip) | Copper 1 oz | 35 µm |
Total board thickness: ~1.18 mm (not including solder mask)
50Ω microstrip on L1/L4: W ≈ 0.30 mm (12 mil) with the 0.18 mm prepreg.
Pros: Cost-effective, good for designs up to ~1 GHz, simple to manufacture.
Cons: No internal signal layers, limited routing density, power-ground plane pair has 0.71 mm separation (higher plane impedance).

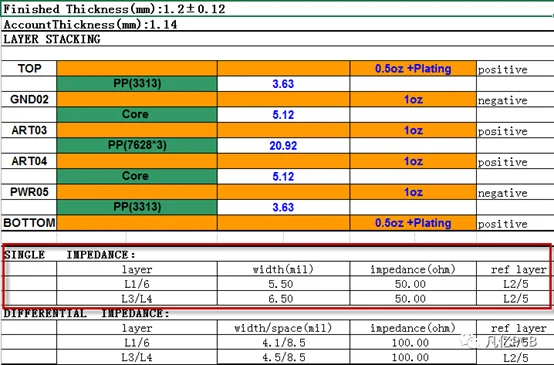

6-Layer Stackup (Mid-Range High-Speed)
| Layer | Function | Material | Thickness |
|---|---|---|---|
| L1 | Signal (microstrip) | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.10 mm |
| L2 | Ground plane | Copper 1 oz | 35 µm |
| — | Core | FR-4 core | 0.20 mm |
| L3 | Signal (stripline) | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.10 mm |
| L4 | Signal (stripline) | Copper 1 oz | 35 µm |
| — | Core | FR-4 core | 0.20 mm |
| L5 | Power plane | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.10 mm |
| L6 | Signal (microstrip) | Copper 1 oz | 35 µm |
Total board thickness: ~0.93 mm
50Ω microstrip on L1/L6: W ≈ 0.17 mm (6.7 mil) with 0.10 mm prepreg.
50Ω stripline on L3/L4: W ≈ 0.13 mm (5 mil) with B = 0.40 mm between L2 and L5.
Pros: Internal stripline layers for high-speed signals, tight coupling between signal and reference planes, good EMI performance.
Cons: Higher cost, thin dielectrics require tight manufacturing tolerance.
8-Layer Stackup (High-Speed / High-Density)
| Layer | Function | Material | Thickness |
|---|---|---|---|
| L1 | Signal (microstrip) | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.10 mm |
| L2 | Ground plane | Copper 1 oz | 35 µm |
| — | Core | FR-4 core | 0.20 mm |
| L3 | Signal (stripline) | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.10 mm |
| L4 | Ground plane | Copper 1 oz | 35 µm |
| — | Core | FR-4 core | 0.20 mm |
| L5 | Power plane | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.10 mm |
| L6 | Signal (stripline) | Copper 1 oz | 35 µm |
| — | Core | FR-4 core | 0.20 mm |
| L7 | Ground plane | Copper 1 oz | 35 µm |
| — | Dielectric | FR-4 prepreg | 0.10 mm |
| L8 | Signal (microstrip) | Copper 1 oz | 35 µm |
Total board thickness: ~1.48 mm
Pros: Two stripline signal layers, excellent power integrity (dedicated ground and power planes), superior EMI shielding, ideal for multi-GHz designs.
Cons: Highest cost, more complex via structures (blind/buried vias often needed).
Design Tip: In the 8-layer stackup above, L3 references L2 (ground) and L4 (ground), making it a dual-ground-referenced stripline — the quietest possible signal environment. This is why 8-layer boards are preferred for mixed-signal designs with sensitive analog alongside high-speed digital [4].
Differential Impedance: 90Ω and 100Ω
Single-ended 50Ω isn't the whole story. High-speed differential interfaces like USB 3.0 (90Ω), HDMI (100Ω), Ethernet (100Ω), and PCIe (85Ω) require controlled differential impedance — which depends on both the single-ended impedance and the coupling between the two traces.
Differential Impedance Formula
Zdiff = 2 × Z₀ × (1 - k)
Where:
- Z₀ = single-ended impedance of one trace
- k = coupling coefficient (0 to 1, increases as traces get closer)
For practical purposes, differential impedance is always less than 2 × Z₀ because the traces couple with each other. The closer the traces, the stronger the coupling, and the lower the differential impedance.
Practical Differential Routing Guidelines
| Interface | Zdiff (Ω) | Z₀ per trace (Ω) | Trace Width | Trace Spacing | Notes |
|---|---|---|---|---|---|
| USB 2.0 | 90 | ~52 | 12 mil | 6 mil | Microstrip, FR-4 |
| USB 3.0 | 90 | ~52 | 8 mil | 5 mil | Strpline preferred |
| HDMI | 100 | ~55 | 8 mil | 7 mil | Microstrip or stripline |
| PCIe Gen 3 | 85 | ~50 | 9 mil | 5 mil | Stripline preferred |
| Ethernet (MIPI) | 100 | ~55 | 10 mil | 6 mil | Route on inner layers |
Key Insight: To hit 100Ω differential, each trace's single-ended impedance is typically 5–10Ω higher than half the differential target. So for 100Ω differential, each trace runs at ~52–55Ω single-ended — not 50Ω. This is because coupling lowers the differential impedance below 2×Z₀ [5].
The Glass Weave Effect (Skew)
A subtle but increasingly important issue in high-speed PCB design is the glass weave effect — also called fiber weave skew. Standard FR-4 isn't a uniform dielectric. It's woven glass fibers impregnated with epoxy resin. The glass fibers have εr ≈ 6, while the epoxy has εr ≈ 3.
If a differential pair is routed such that one trace runs over glass fibers and the other runs over epoxy-filled gaps, the two traces experience different effective dielectric constants. This causes:
- Skew between the positive and negative signals
- Mode conversion (common-mode noise)
- Eye diagram degradation at high data rates
- Jitter that increases with trace length
Mitigation Strategies
- Route at an angle (10°–15°): This ensures both traces of a differential pair cross glass bundles at the same rate, averaging out the effect.
- Use spread glass cloth (e.g., 1078, 1080, 2116): These weave styles have smaller glass pitch, reducing the gap between fiber bundles.
- Select low-Dk materials: For 10+ Gbps signals, use Rogers RO4350B, Megtron 6, or similar low-loss, homogeneous dielectrics.
- Minimize trace length: Shorter traces mean less accumulated skew.
At data rates above 8 Gbps (e.g., USB 3.1 Gen 2, PCIe Gen 4), the glass weave effect becomes a first-order design concern that can make or break signal integrity [3].
IPC-2141A: The Standard for Controlled Impedance
IPC-2141A, published by the Institute for Printed Circuits, is the industry standard for controlled impedance design. It provides:
- Standardized impedance calculation formulas for microstrip, stripline, and embedded microstrip
- Tolerance guidelines for fabrication (typically ±10% for 50Ω)
- Stackup verification methodologies
- TDR (Time Domain Reflectometry) measurement procedures
Key IPC-2141A Recommendations
| Parameter | Standard Tolerance | Tight Tolerance |
|---|---|---|
| Impedance (50Ω) | ±10% (45–55Ω) | ±5% (47.5–52.5Ω) |
| Dielectric thickness | ±10% | ±5% |
| Trace width (etched) | ±20% | ±10% |
| εr tolerance | ±0.4 | ±0.2 |
For production designs, always specify impedance requirements on the fabrication drawing — e.g., "L1 microstrip: 50Ω ±10% (ref: L2 ground plane)." Your fab house will adjust trace widths to hit the target based on their actual material parameters [2].
FAQ
What dielectric constant should I use for FR-4 in impedance calculations?
Standard FR-4 has a nominal εr of 4.3–4.5 at 1 MHz, but the effective εr depends on frequency, glass weave style, and resin content. For impedance calculations on standard FR-4 (7628 glass), use εr = 4.3 as a starting point. For high-frequency designs, consult your manufacturer's material datasheet — the actual εr can vary from 3.9 to 4.7. Always verify with the fab house, as they will adjust based on their measured material data.
Can I use 50Ω impedance on a 2-layer board?
Yes, but it's challenging. On a 2-layer board, the dielectric between the signal layer and ground plane is typically the full core thickness (1.6 mm). Using the microstrip formula, you'd need a trace width of roughly 3 mm (120 mil) for 50Ω — which is impractically wide for most designs. Solutions include using a thinner core (0.4–0.8 mm), routing on a 4-layer board instead, or accepting a higher impedance (75Ω or 100Ω) if your system tolerates it.
How does solder mask affect impedance?
Solder mask has a dielectric constant of approximately 3.3–4.0 and typically adds 10–20 µm of dielectric above the trace. For microstrip traces, this lowers the impedance by 2–5Ω compared to an unmasked trace. Most impedance calculators include a solder mask compensation factor. If your design requires tight tolerance (±5%), always include solder mask in the simulation. Stripline traces are unaffected by solder mask since they're buried.
What's the difference between single-ended and differential impedance?
Single-ended impedance (Z₀) is the impedance of one trace referenced to ground. Differential impedance (Zdiff) is the impedance between the two traces of a differential pair. Due to electromagnetic coupling between the traces, Zdiff < 2 × Z₀. For 100Ω differential USB/HDMI pairs, each trace's single-ended impedance is typically 52–55Ω — not 50Ω.
Should I use microstrip or stripline for USB 3.0 signals?
USB 3.0 (5 Gbps) can work on microstrip, but stripline is strongly recommended for production designs. Stripline provides better EMI shielding, more predictable impedance (no air/solder mask variables), and lower radiation. The trade-off is that you need at least a 6-layer board to route USB 3.0 on stripline layers. If you must use microstrip, keep traces short (< 3 inches) and away from board edges.
How do I specify impedance control to my PCB manufacturer?
Include an impedance control table on your fabrication drawing listing: layer pair, target impedance, tolerance, reference layer, and calculation basis (e.g., IPC-2141A). Example: "L1 to L2: 50Ω ±10% microstrip, W=0.30mm, H=0.18mm, εr=4.3, ref L2." The fab house will run their own field solver and may adjust trace widths. Request a stackup confirmation and TDR test coupon before production.
Conclusion
Designing a PCB stackup for 50Ω impedance control is a systematic process that balances geometry, materials, and manufacturability. The key takeaways:
- Choose microstrip for simplicity (outer layers, lower cost) or stripline for performance (inner layers, better EMI).
- Use IPC-2141A formulas for initial calculations, then verify with a field solver.
- Always design symmetric stackups to prevent board warpage and ensure consistent impedance.
- Match the layer count to your signal speed: 4-layer for < 1 GHz, 6-layer for 1–5 GHz, 8-layer for 5+ GHz.
- Account for differential pairs — USB, HDMI, and PCIe need 85–100Ω differential, not 50Ω single-ended.
- Consider the glass weave effect for multi-Gbps designs, and route at an angle or use spread glass.
- Specify impedance requirements clearly on fabrication drawings and verify with your manufacturer.
By following these principles and the stackup designs provided, you can achieve reliable 50Ω impedance control that passes signal integrity analysis and performs in production.
References
- Intel. *High-Speed USB Platform Design Guidelines*. Intel Developer Zone
- IPC-2141A. *Controlled Impedance Circuit Boards and High Speed Logic Design*. IPC International. IPC Standards
- Sierra Circuits. *PCB Impedance Calculator and Design Guide*. Sierra Circuits
- Altium. *PCB Stackup Design: Best Practices for Signal Integrity*. Altium Resources
- Texas Instruments. *High-Speed Interface Layout Guidelines* (Application Note SCAA082). TI Analog Applications Journal
