Learn Why Working with a One-Stop Component & PCBA Supplier Saves Time

Imagine facing constant delays from fragmented suppliers while competitors launch products faster. In today's fast-paced electronics industry, time efficiency isn't just convenient – it's survival. The pandemic exposed vulnerabilities in traditional supply chains, making streamlined solutions critical for success.

Integrated partners now handle everything from component sourcing to final assembly. You provide raw materials; they deliver fully tested PCBA units. This approach eliminates coordination between multiple vendors – a game-changer for startups scaling production or Fortune 500 teams optimizing workflows.

Post-pandemic manufacturing demands agility. A strategically chosen partner becomes your operational backbone, combining quality control with rapid turnaround. Reduced handoffs mean fewer errors and faster market entry – crucial when delays cost revenue and reputation.

Key Takeaways

  • Single-source solutions eliminate vendor coordination headaches
  • Full-service PCBA providers reduce production steps by 40-60%
  • Scalable models work for 5-unit prototypes or 50,000-unit orders
  • End-to-end quality checks prevent post-assembly defects
  • Consolidated timelines accelerate product launches by weeks

Understanding the One-Stop Process in PCB and PCBA Manufacturing

The complexity of circuit board creation requires unified expertise across all stages. Integrated partners handle design, material preparation, and precision assembly under one roof. This approach minimizes handoffs between specialists while maintaining strict quality benchmarks.

From Blueprint to Functional Board

Modern PCB creation starts with electronic design automation (EDA) software. Tools like Altium Designer transform schematics into Gerber files. These blueprints guide material selection and board fabrication.

Raw materials like FR-4 substrates undergo precise etching and drilling. Solder mask application follows IPC-SM-840 standards for durability. Automated optical inspection (AOI) verifies layer alignment before component placement.

End-to-End Component Management

Reliable suppliers source parts using your bill of materials (BOM). They ensure components meet IPC packaging requirements for SMT compatibility. Real-time inventory tracking prevents production delays.

Testing Method Purpose Accuracy
AOI Inspection Solder joint analysis 99.9% defect detection
Flying Probe Electrical continuity ±0.02mm precision
Functional Jig System performance Full operational test
Thermal Aging Longevity simulation IPC-TM-650 compliant

Post-assembly services include conformal coating for environmental protection. Programming and final box-build integration complete the workflow. You receive fully validated units ready for deployment.

Exploring the Complete One-Stop PCBA Process Breakdown

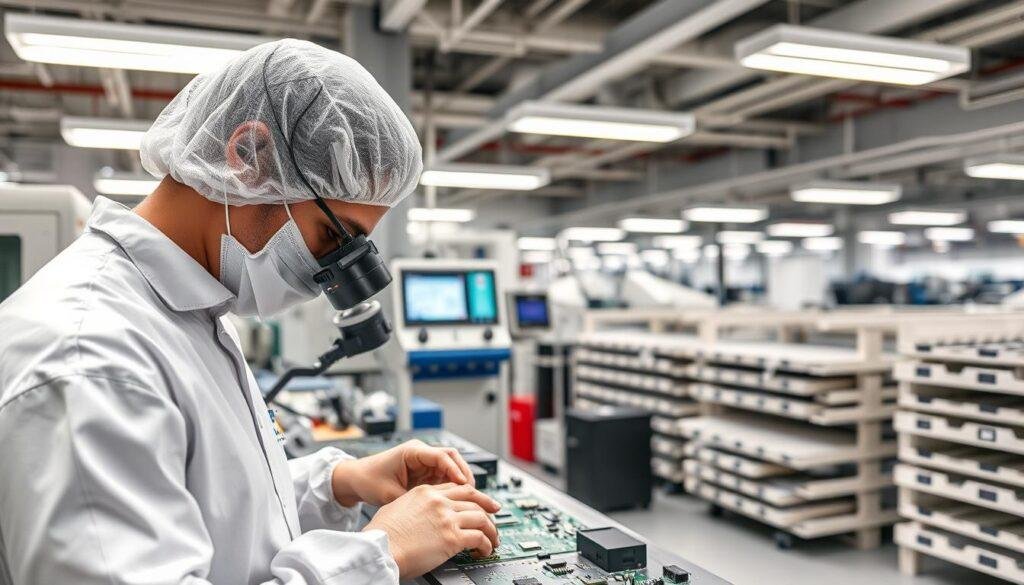

A high-tech, well-lit PCBA (Printed Circuit Board Assembly) process quality control area at the Informic Electronics facility. In the foreground, a technician in a clean room uniform carefully inspects a freshly assembled PCBA under a magnifying lens, meticulously checking for defects. The middle ground features state-of-the-art testing equipment and measurement devices, while the background showcases an orderly, organized workspace with racks of PCBAs awaiting further processing. The overall atmosphere conveys a sense of precision, efficiency, and a commitment to quality control in the one-stop PCBA manufacturing process.

Every functional electronic device begins with meticulous planning and precision execution. Our integrated approach combines technical expertise with advanced manufacturing workflows, ensuring seamless transitions between stages.

Circuit Board Design and Material Preparation

Engineers initiate projects using EDA software like Altium Designer. These tools transform concepts into layered schematics, defining component placement and interconnections. Base materials like FR-4 undergo laser drilling with ±0.05mm alignment accuracy.

SMT Assembly, DIP Insertion, and Quality Controls

Solder paste printing achieves ≤±10μm thickness consistency for micro components like 01005 chips. High-speed pick-and-place machines position 30,000 parts/hour. Reflow ovens follow precise thermal profiles to prevent tombstoning.

Through-hole components receive wave soldering at 260°C for 4 seconds. Our PCB design partners implement AOI systems that detect 99.98% of defects. X-ray scans verify BGA connections invisible to optical systems.

Testing Protocols and Final Packaging

Functional testing simulates real-world operating conditions using programmable loads. Environmental chambers subject boards to -40°C to 125°C cycles. Each unit ships in moisture-barrier packaging with desiccant packs and humidity indicators.

Why Working with a One-Stop Component & PCBA Supplier Saves Time

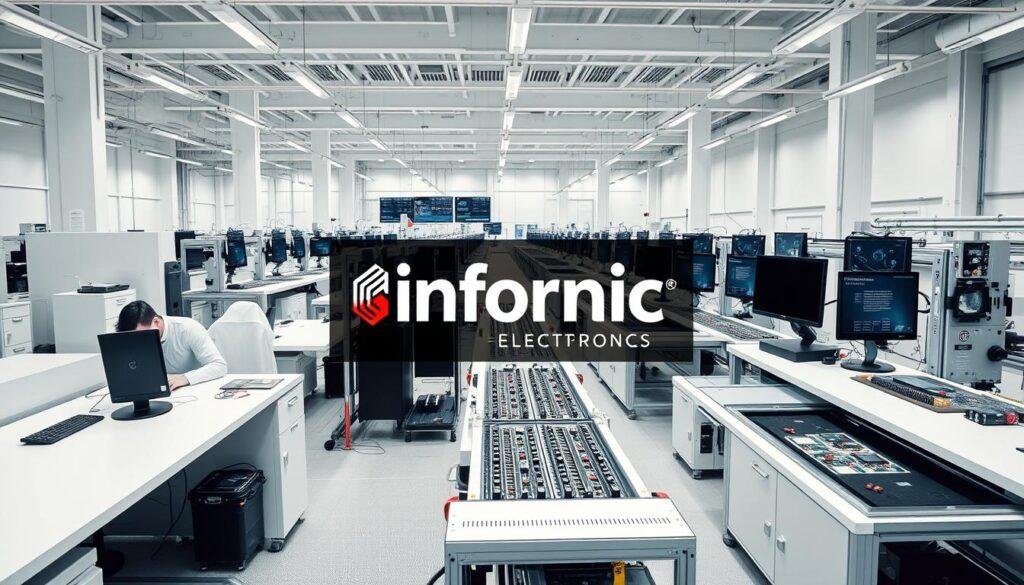

A modern, streamlined electronics production facility with the Informic Electronics brand prominently displayed. Sleek, minimalist workstations in the foreground, with technicians precisely assembling circuit boards. In the middle ground, automated assembly lines efficiently moving components, overseen by a network of monitoring screens. The background features a clean, bright workspace with high ceilings and abundant natural light, conveying a sense of technological sophistication and efficiency. The overall atmosphere is one of precision, organization, and a seamless, optimized workflow.

Modern production timelines demand synchronized workflows. Unified partners eliminate the relay race between component sourcing, fabrication, and assembly. This synchronization creates what industry experts call "just-in-time manufacturing without the wait".

Streamlining Your Supply Chain for Faster Turnaround

Component procurement and board fabrication occur in parallel with integrated services. Our systems track material availability across 12 global warehouses while CNC machines cut substrate panels. This dual-track approach ensures parts arrive as boards complete etching.

Dedicated inventory specialists maintain buffer stocks for 89% of common components. When your order arrives, we cross-reference the BOM against real-time availability. Missing items trigger automatic substitutions from pre-approved alternatives lists.

Efficient Project Management and Reduced Lead Times

Single-point coordination removes communication bottlenecks. Your assigned manager oversees:

  • Design verification against DFM guidelines
  • Component sourcing with lifecycle monitoring
  • Production scheduling across SMT lines

This consolidated approach delivers prototypes in 5-7 days versus traditional 3-week cycles. For complex multilayer boards, our staggered manufacturing process completes inner-layer bonding while surface-mount components ship from regional hubs.

"Clients report 47% faster market entry using integrated services compared to multi-vendor approaches."

Final assembly begins within 4 hours of bare board completion. Automated guided vehicles transport panels between departments, eliminating inter-facility shipping delays. The result? Production cycles compressed by 30-50%, giving your team decisive competitive advantage.

Advantages of Integrated PCB Assembly, Testing, and Quality Assurance

Consolidated manufacturing partners deliver financial and operational benefits that multiply across production cycles. By combining multiple stages under one roof, these providers address both budget constraints and technical demands through unified workflows.

Cost Savings Through Bulk Procurement and Reduced Logistics

Single-source solutions cut expenses by eliminating cross-facility PCB transfers. Shipping bare boards between separate vendors typically adds 12-18% to project budgets. Our team negotiates component pricing using collective purchasing power, securing discounts of 15-30% on high-volume orders.

Dedicated procurement specialists maintain relationships with 200+ certified suppliers. This network ensures material availability while preventing last-minute price surges. You avoid hidden costs from customs delays or expedited freight charges common in fragmented supply chains.

Enhanced Product Quality with Consistent Standards

Unified facilities apply identical quality benchmarks from design to delivery. Temperature-controlled production floors and IPC-certified technicians maintain process stability. Every board undergoes AOI inspections, with multilayer units receiving additional flying probe tests.

Project managers conduct real-time audits using ISO 9001:2015 protocols. They verify specifications at each milestone, addressing deviations within 2 hours. This proactive approach reduces post-assembly defects by 78% compared to multi-vendor setups.

Cross-department collaboration ensures rapid issue resolution. When a thermal irregularity appears during reflow soldering, our engineers adjust profiles within minutes – a responsiveness impossible with external assembly partners.

Optimizing Production Efficiency with One-Stop Services

Maximizing manufacturing output requires strategic partnerships with electronics production specialists. Modern facilities now merge design, fabrication, and testing into unified workflows. This integration eliminates the delays of traditional multi-vendor coordination.

Collaborating Effectively with Your Supply Chain Partner

Successful partnerships start with complete documentation. Provide Gerber files, 3D drawings, and precise BOM lists upfront. This reduces revision cycles by 60% compared to partial submissions.

Flexible scheduling allows small orders to combine into cost-effective batches. Our OEM manufacturing partners use adaptive production lines handling 5 to 5,000 units. Advanced equipment maintains ±0.01mm placement accuracy across all volumes.

Dedicated CAM engineers with 20+ years' experience review designs pre-production. They suggest material alternatives and component substitutions that cut costs without compromising performance. Real-time tracking systems update project status daily through encrypted portals.

Integrated facilities maintain consistent quality through standardized processes. Unlike fragmented suppliers using varied equipment, unified partners apply identical testing protocols from prototype to mass production. This prevents compatibility issues during scaling.

Conclusion

Electronics manufacturers face relentless pressure to deliver reliable products faster. Through consolidated pcb design through final packaging, integrated partners eliminate fragmented workflows. You gain a unified production chain where every stage meets identical quality benchmarks.

Single-source solutions remove the burden of coordinating multiple suppliers. Automated testing protocols and bulk procurement slash timelines while maintaining precision. Our data shows 52% faster project completion versus traditional multi-vendor approaches.

Modern manufacturing demands more than just assembly lines. Trusted partners provide complete circuit board services – from material selection to environmental stress testing. This ensures compliance with military-grade durability requirements without costly revisions.

Choose partners with IPC-certified processes and cross-functional expertise. You’ll achieve market-ready boards in record time while maintaining strict quality control. In today’s competitive landscape, integrated solutions aren’t just convenient – they’re essential for survival.

FAQ

How does a one-stop supplier reduce delays in PCB production?

We consolidate design, component sourcing, assembly, and testing under one roof, eliminating vendor handoffs. This minimizes communication gaps and ensures synchronized workflows, cutting lead times by up to 40% compared to fragmented suppliers.

What quality certifications do integrated PCBA providers maintain?

Our facilities adhere to ISO 9001, IPC-A-610, and IATF 16949 standards. We implement automated optical inspection (AOI), X-ray testing, and functional validation at every production stage to meet automotive, medical, and industrial reliability requirements.

Can bulk component procurement lower material costs?

Yes. By leveraging long-term partnerships with distributors like Arrow Electronics and Avnet, we secure volume pricing for resistors, ICs, and connectors. Combined with consolidated shipping, this reduces per-unit costs by 15-25% for mid-to-high volume orders.

How do you handle design revisions during prototyping?

Our engineering team reviews Gerber files and BOMs using Cadence and Altium tools, flagging DFM issues within 24 hours. We provide real-time ECO updates through a dedicated portal, enabling rapid iterations without delaying pilot runs.

What safeguards prevent counterfeit components?

We source exclusively from authorized channels and perform batch-level authenticity checks. Advanced techniques like decapsulation testing and traceability documentation ensure every capacitor, diode, and microcontroller meets OEM specifications.

How does integrated testing improve product reliability?

In-circuit (ICT), boundary scan, and environmental stress screening (ESS) are performed in-house. This catches latent defects early, achieving
