The 1N4148 diode, a seemingly unimpressive component, hides a world of possibilities within its small size. As a fast-switching, small-signal diode, it has earned a reputation for reliability and versatility. This blog post will take you on a journey through the 1N4148 diode’s inner workings, specifications, and practical applications. You will discover why this diode has become a staple in the electronics world and how it can help you in your projects.
Key Takeaways
- The 1N4148 diode is a small-signal, fast switching component with versatile applications.
- It has a maximum current capacity of 300mA and reverse recovery time of 8ns for reliable performance in circuits.
- The 1N4148 diode can be sourced from online retailers at an affordable price range between $0.08-$0.25 per unit with reasonable lead times
Understanding the 1N4148 Diode
At its core, the 1N4148 diode is a small-signal diode with a typical forward voltage drop of 0.72V and a 300mA maximum forward current rating. Possessing two modes of operation – forward biased and reverse biased – this diode is known for its versatility and wide range of applications.
From rapid switching and high-speed rectification to protecting homes and telecommunication industries, the 1N4148 diode has proven its worth time and time again.
Diode Basics
A deep understanding of the basics of diodes in general is necessary to appreciate the 1N4148 diode. A diode is a two-terminal component that has the ability to regulate the direction of current flow. It principally permits the passage of current in just one direction, from the anode to the cathode. The 1N4148 diode, for example, has a forward surge current of 2A.
Diodes, such as Zener diodes, can also be used to generate a known reference voltage at their Zener voltage, making them an essential part of many circuits.
1N4148 Specifics
The 1N4148 diode is a popular choice when it comes to small signal diodes. It has lightning switching capabilities, which sets it apart from the rest. With a maximum current capacity of 300mA, it is ideal for applications that demand rapid response, such as high-speed rectification.
This diode also boasts an impressive reverse recovery time of 8ns when subjected to a forward current of 10mA. Given its recommended operating and storage temperature range of -65°C to +175°C, the 1N4148 diode has proven to be a robust and reliable electronic component.
Pinout and Connection of the 1N4148 Diode
Understanding the pinout and connections of the 1N4148 diode is necessary for its proper use in a circuit. This diode features two pins: an anode and a cathode. The anode is the positive pin, whereas the cathode is the negative pin, usually indicated by the tip of the triangle with the line on top of it in its symbol.
Correct identification and connection of these pins are essential for the diode’s functionality.
Identifying Pins

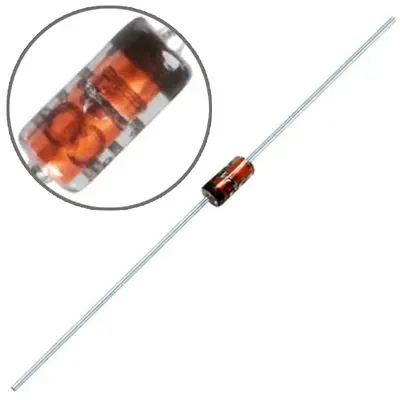

Distinguishing between the anode and cathode pins of the 1N4148 diode is relatively simple. The cathode terminal can be identified by the presence of a grey bar on the diode’s body. This visual marker ensures that you can accurately identify the cathode pin and connect it correctly in your circuit.
Proper Connection
After identifying the anode and cathode pins, you can connect the 1N4148 diode to a circuit. The anode terminal should be connected to the positive side of the circuit, while the cathode terminal should be connected to the negative side or ground.
With the proper connection established, the diode can function as intended and contribute to the overall performance of the circuit.
Key Characteristics of the 1N4148 Diode
The 1N4148 diode is known for its:
- Fast recovery time of 8ns at a forward current of 10mA
- Peak repetitive reverse voltage of 100V
- Low forward voltage drop of 0.72V
- Small signal diode nature
- High current capacities of up to 300mA
These characteristics make the 1N4148 diode a popular choice for a wide range of applications.
Its fast switching capabilities are particularly advantageous in industrial control circuits, telecommunication, and TV applications, where rapid response times are crucial. Additionally, its low forward voltage drop makes it suitable for low current applications. Furthermore, its 8ns reverse recovery time ensures high-speed switching in various circuits.
Fast Switching Capabilities
Fast switching capabilities refer to a diode’s ability to quickly switch between conducting and non-conducting states, which is essential in applications where rapid response time is crucial. The 1N4148 diode, due to its fast-switching capabilities, can handle switching applications up to approximately 100 MHz, and it has a reverse-recovery time of no more than 4 ns.
This ability to rapidly transition between on and off states makes the 1N4148 diode ideal for a variety of applications that demand high-speed performance.
Low Current Applications
With a low forward voltage drop of 0.72V, the 1N4148 diode is particularly suitable for low current applications. In this capacity, it can be used for signal rectification, signal clamping, and voltage reference circuits, which are often found in low-power electronic devices and circuits where precise control of current flow is necessary.
Its versatility and efficiency make it a popular choice for a wide range of low current applications.
Reverse Recovery Time
A critical factor in the performance of the 1N4148 diode is its reverse recovery time, typically between 4 and 8 nanoseconds. Reverse recovery time impacts the speed of the circuit and the amount of power consumed, making it indispensable for applications that require high-speed switching.
The 1N4148 diode’s fast reverse recovery time ensures reliable performance in a variety of high-frequency signal circuits.
Alternative Diodes and Comparisons
While the 1N4148 diode is a popular choice for many applications, there are alternative diodes available, such as:
- 1N914
- FDH333
- 1N4007
- 1N4149
- 1N4150
- 1N916
- BAT46
These alternative diodes possess different characteristics, such as varying switching speeds, current ratings, and reverse recovery times.
Next, brief explorations of two of these alternatives, the 1N914 and the 1N4448, will be provided, along with their comparisons to the 1N4148 diode.
1N914
The 1N914 diode is a small signal diode capable of handling low voltage and low current, similar to the 1N4148. The primary difference between the 1N914 and the 1N4148 lies in the 1N914’s higher reverse voltage rating and faster switching speed.
Just like the 1N4148, the 1N914 diode can be employed in single supply isolation, industrial control circuits, and telecommunication and TV circuits. It can be obtained from online retailers at a price range of $0.10 to $0.50.
1N4448
The 1N4448 diode is a high-speed switching diode often used for general-purpose rectification, similar to the 1N4148. It has a higher peak reverse voltage of 100V compared to the 1N4148’s peak reverse voltage of 75V.
The 1N4448 diode’s other specifications include a maximum forward current of 200mA, a reverse recovery time of 4ns, a DO-35 package, and a through-hole mounting style. It is commonly employed in applications such as general-purpose rectification, single supply isolation, industrial control circuits, and telecommunication and television.
Practical Applications of the 1N4148 Diode
The 1N4148 diode’s versatility and impressive performance characteristics make it suitable for a wide array of practical applications, including:
- Single supply isolation for high-frequency signal circuits
- Industrial control circuits
- Computer boards
- Communication devices
The 1N4148 diode has proven to be an invaluable component in many situations, often outperforming similar parts in various applications.
Its rapid switching capabilities are particularly advantageous in industrial control circuits, telecommunication, and TV applications, where a quick response time is crucial. Its low forward voltage drop makes it suitable for low current applications, such as AC to DC conversion and blocking voltage spikes to protect electronic components. Additionally, its fast reverse recovery time makes it suitable for high-frequency signal circuits.
Single Supply Isolation
The 1N4148 diode’s ability to function in single supply isolation applications is one of its many strengths. In high-frequency signal circuits, single supply isolation allows for the division of ground references and the elimination of the need for multiple power supplies. This not only decreases cost and complexity but also enhances signal integrity and safety by using a single power supply.
The 1N4148 diode’s fast-switching capabilities and low forward voltage drop make it an ideal choice for such applications.
Industrial Control Circuits
In industrial control circuits, the 1N4148 diode plays a crucial role. Its fast-switching abilities make it suitable for high-speed switching operations, while its low current requirement makes it appropriate for low current operations.
Moreover, its fast reverse recovery time contributes to its suitability for high-frequency signal circuits, further solidifying its position as a valuable component in various industrial applications.
Telecommunication and TV
The 1N4148 diode’s rapid switching abilities also make it a popular choice for telecommunication and TV applications. Its ability to swiftly transition between on and off states allows it to block out undesired signals and noise, ensuring optimal performance in high-frequency signal circuits.
The diode’s consistent performance and reliability make it an essential component in these industries.
Sourcing and Purchasing the 1N4148 Diode
Obtaining the 1N4148 diode is a straightforward process, as it is readily available from various online retailers and electronic component stores.
We will further discuss aspects like online retailers, price range, and stock availability to facilitate your decision-making process when sourcing and purchasing the 1N4148 diode. To ensure it meets your exact specifications, refer to the product data sheet.
Online Retailers
Several reputable online retailers offer the 1N4148 diode for sale, including Digi-Key, Mouser, and Arrow Electronics. These online vendors are known for their reliability and commitment to customer satisfaction, ensuring that you can confidently purchase the diode from them.
The price range of the 1N4148 diode typically varies from $0.01 to $0.10 USD, depending on quantity and supplier.
Price Range
The 1N4148 diode is generally obtainable at a nominal price per unit, making it a cost-effective choice for most applications. While the price range may vary depending on factors such as the quantity purchased, the manufacturer, and the point of purchase, the diode typically costs between $0.08 to $0.25 per unit.
This affordable price range makes the 1N4148 diode in an axial package an attractive option for various applications.
Stock Availability
The 1N4148 diode is widely available and can generally be found in stock at most online retailers and electronic component stores. Lead times for the diode may vary depending on the retailer, but they are typically estimated to be between 1-2 weeks.
With its extensive availability and reasonable lead times, sourcing and purchasing the 1N4148 diode should be a hassle-free process.
Summary
In conclusion, the 1N4148 diode is a versatile and reliable component that has proven its worth in a wide array of applications. Its fast-switching capabilities, low forward voltage drop, and rapid reverse recovery time make it an invaluable asset in industries such as industrial control circuits, telecommunication, and TV. With its extensive availability and affordable price range, the 1N4148 diode is an attractive option for those seeking a high-performance diode for their projects. As you venture into the world of electronics, the 1N4148 diode will undoubtedly prove to be a trusted and indispensable companion.
Frequently Asked Questions
What is the 1N4148 diode used for?
The 1N4148 diode is commonly used for fast switching operations and can be found in applications like single supply isolation, industrial control circuits, computer boards, communication, and TV. It has two modes of operation named Forward Biased and features a high resistance under a fixed voltage and low resistance above that.
What is the replacement for 1N4148 diode?
The 1N4007 is the recommended replacement for the 1N4148 diode. This 1N400x series of diodes are capable of handling up to 1A of current and can withstand reverse voltages of up to 50V (1N4001) or 1000V (1N4007) under special conditions. However, ensure that you set the current below 100mA and keep the reverse voltage below 100V for successful replacement.
What is the max power of 1N4148 diode?
The 1N4148 diode can handle a maximum spike of 100 V (VRRM) in the reverse direction, with a maximum voltage drop during the reverse biased condition of 75 V.
Can I use 1N4148 instead of 1N4001?
Yes, you can use a 1N4148 instead of a 1N4001, but the 1N4001 is the better choice as it has a greater amperage capacity.
What is the main advantage of the 1N4148 diode?
The 1N4148 diode’s main advantage is its fast recovery time of 8ns at 10mA, enabling it to be used in applications requiring rapid switching.
